Engineering Highlights
Streamlined low pressure-drop interior flow geometry; quick-opening davit covers available for fast screen basket cleanout on larger sizes.
Pipeline Strainers Design & Manufacturing Scope
Manufactured strictly in compliance with international standards, backed by certified raw material heat numbers, optical emission spectrometry, and full hydrostatic pressure trials.
Pipeline Strainers Core Sub-Categories & Models
Select a specialized sub-category below to inspect individual engineering models, face-to-face dimensions, torque curves, and model-specific material selections.
Severe Service Design Advantages
How TSV Pipeline Strainers deliver continuous bubble-tight shutoff, zero fugitive emissions, and decades of operational safety in harsh operating environments.
High Filtration Free Area Ratio (>4:1)
Oversized basket and screen chambers ensure the net free straining area is at least 4 times the nominal pipe cross-section, minimizing pressure drops.
Heavy-Duty Perforated Screens with Wire Mesh
Heavy-gauge 304/316 stainless steel perforated support sheets reinforced with fine Dutch-weave mesh filtering down to 20 microns.
Quick-Opening Cover Clamping Systems
Optional davit-assisted swing bolt covers allow single-operator maintenance and rapid element cleaning during plant turnarounds.
Blow-Off & Differential Pressure Tappings
Factory machined NPT blow-off drain ports and upstream/downstream pressure gauge ports for continuous debris monitoring.
Frequently Asked Questions for Pipeline Strainers
Answers to common questions from EPC pipeline engineers, instrument technicians, and international sourcing managers.
What is the difference between screen perforation and mesh count?
Perforated plate uses punched circular holes (e.g., 1.5mm or 3mm) for coarse debris. Wire mesh utilizes woven stainless wire specified by wires per linear inch (e.g., 20 mesh to 400 mesh) for fine particulate filtration.
When is a Basket Strainer preferred over a Y-Strainer?
Basket strainers provide significantly higher dirt-holding capacity and lower pressure drop, making them ideal for pump suction lines and liquid pipelines. Y-strainers are preferred for steam, gas, and compact piping.
Can TSV strainers handle highly corrosive chemical media?
Yes, we fabricate and cast bodies in CF8, CF8M, CF3M, Hastelloy C276, and Super Duplex 2507, with customized PTFE/PFA lining options.
ASME Pipeline Strainer CAD Blueprints & Mesh Dynamics
Cross-sectional architecture of TSV Y-type, basket, and temporary conical strainers. Engineered to safeguard high-pressure pumps, compressors, and control valves from pipe scale and debris.
Key Engineering Mechanics & Standard Adherence
Precision-engineered components verified by finite element analysis (FEA) and witnessed hydro tests:
Optimized Free Area Ratio (FAR)
Screen chamber provides minimum 4:1 open area ratio relative to nominal pipe area, preventing rapid differential pressure spikes.
Reinforced Heavy Gauge Screens
Perforated 304/316 stainless steel backing cylinder with optional fine wire mesh liner (20 to 200 mesh) withstands high delta-P collapse.
Bolted Cover with Drain Blowoff
Allows rapid screen extraction for maintenance or automated online blowdown flushing via integral NPT blowoff ball valve.
Precision Machined Screen Seats
Top and bottom machined recess guides screen squarely into position, preventing bypass of oversized particulate.

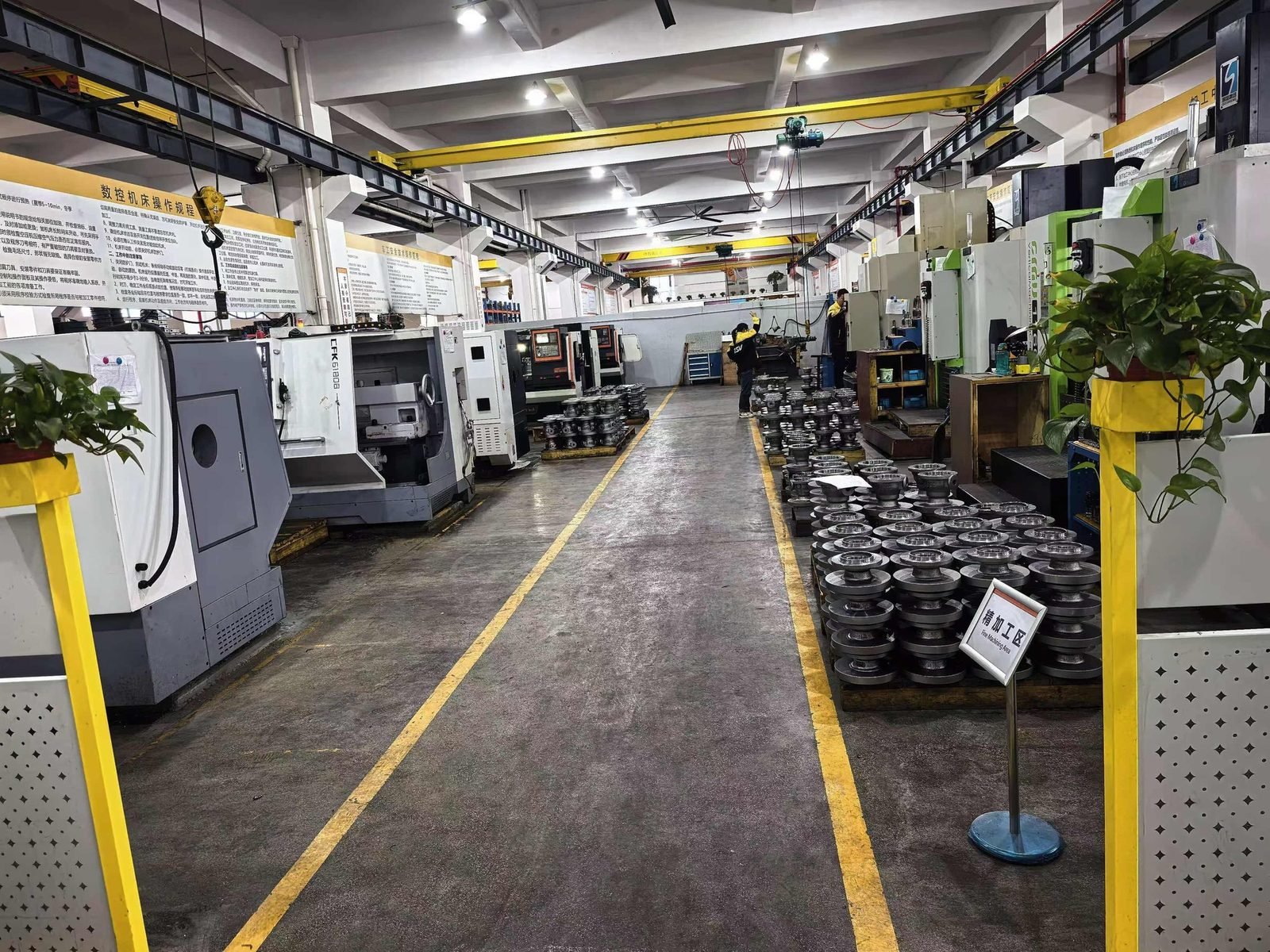

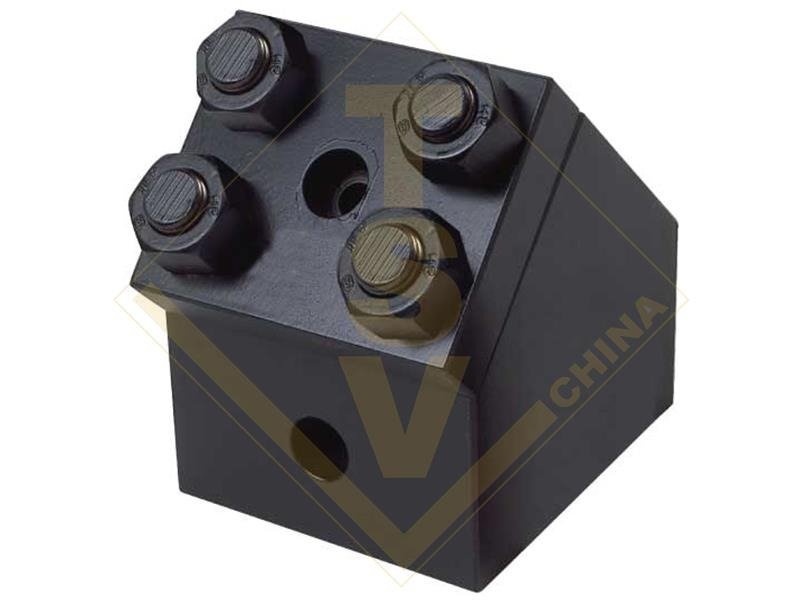

Machining Precision & Certified Hydrostatic Witness
Explore All 4 Pipeline Strainer Sub-Categories
1:1 aligned with TSV factory catalog. Severe-service filtration solutions for process piping, power generation, and pump protection.

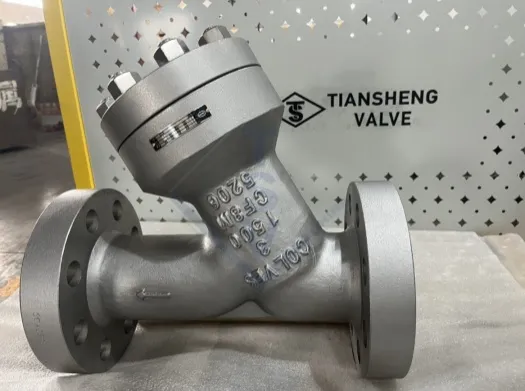

Y-Type Pipeline Strainers
Compact ASME Class 150-2500 Y-strainers for liquid, gas, and steam lines with blow-off ports.

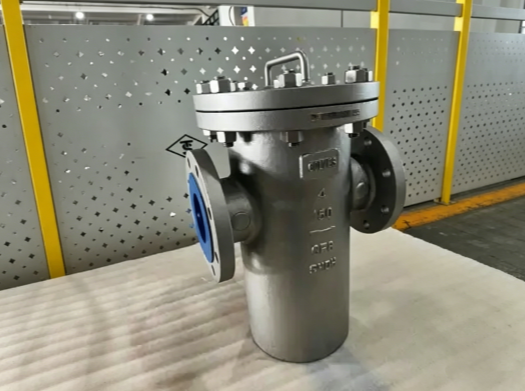

Current Series View Page Top ↑Basket Strainers
Large debris holding capacity simplex and duplex switchable basket strainers for pump protection.
High Capacity View Basket Strainers →T-Type Strainers
Compact right-angle and straight-through tee type strainers with quick-release blind covers.
In-Line Tee View T-Type Strainers →Temporary & Special Strainers
Conical witch's hat, wafer basket, and custom start-up commissioning filters for new lines.
Start-Up Cone View Temporary & Special Strainers →Request a Formal Engineering Quote for Pipeline Strainers
Submit your project bill of quantities (BOQ), pipeline data sheet, or target MOC specifications. TSV's application engineering team provides certified dimensional drawings, MTC documentation, and firm export pricing within 24 hours.
