Industrial Control & Regulating Valves
Engineered for precision dynamic flow throttling, high pressure-drop boiler feed regulation, gas letdown stations, and anti-cavitation duty. Fitted with multi-spring pneumatic diaphragm actuators or digital smart electric positioners with HART / Modbus / Profibus digital fieldbus communication.
Design Codes & Valve Construction Standards
Engineered to IEC 60534 and ASME B16.34 parameters for exact modulating accuracy, low hysteresis, and high dynamic stability.
| Engineering Parameter | Applicable Codes, Standards & Design Criteria |
|---|---|
| Design & Manufacturing Codes | IEC 60534-1 to 60534-4, ASME B16.34, ISA 75.01 (Cv calculation), DIN EN 60534 |
| Face-to-Face Dimensions | IEC 60534-3-1, ASME B16.10, DIN EN 558 Series 1 |
| Trim Design Options | Single-Seated Unbalanced, Pressure Balanced Cage Guided, Multi-Stage Multi-Path Anti-Cavitation |
| Flow Rangeability | 50:1 standard (custom contoured trims provide up to 100:1 wide turn-down ratio) |
| Actuation Modes | Multi-spring pneumatic diaphragm (Air-to-Open / Air-to-Close), Electro-hydraulic, Smart Electric (4-20mA) |
| Digital Smart Positioners | Integrated electro-pneumatic positioners (Fisher FIELDVUE, Siemens SIPART, ABB, or TSV Smart) |
| Packing & Fugitive Emissions | Live-loaded PTFE V-ring or pure flexible graphite with Belleville disc springs (ISO 15848-1 Class BH) |
| Seat Leakage Standards | ANSI/FCI 70-2 Class IV (Metal Seat standard), Class V (Critical steam), Class VI (Soft bubble-tight) |
Industrial Control Valve Standard & Engineered Models
TSV manufactures an engineered lineup of Industrial Control Valve configurations for global oil & gas transmission pipelines, refinery manifolds, power plants, and severe industrial processes. Each unit undergoes 100% hydrostatic and pneumatic factory acceptance testing before dispatch.

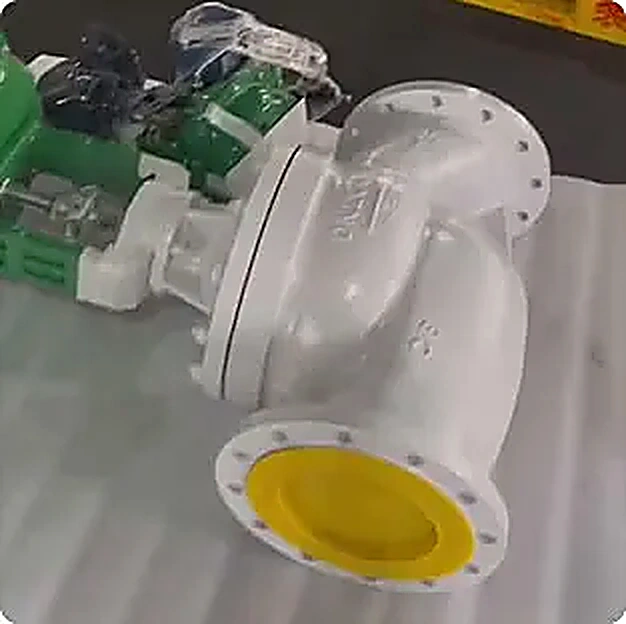

Pneumatic Diaphragm Single-Seated Precision Control Valve
Top-guided single seated globe control valve with multi-spring pneumatic diaphragm actuator and smart positioner for tight shut-off and high rangeability.
Pneumatic Cage-Guided Balanced High-Capacity Control Valve
Balanced trim plug reduces actuator thrust requirements by 80%, handling large pressure drops without vibration or stem oscillation in power piping.
Pneumatic Double-Seated High Flow Industrial Control Valve
Twin seat rings balance dynamic hydraulic force on the plug, enabling very high flow rates and low actuator forces in district heating and cooling.
High-Pressure Angle-Pattern Cavitation-Free Control Valve
90-degree angle body geometry prevents impingement erosion on the downstream pipe wall in severe flashing and outgassing hydrocarbon lines.
Pneumatic Bellows Seal Zero-Leakage Toxic Media Control Valve
Multi-ply hydroformed metal bellows eliminates packing stem leakage, fully compliant with ISO 15848-1 Class AH for lethal chlorine and phosgene gas.
Electric Intelligent Modulating Single-Seated Globe Control Valve
Integrated intelligent linear electric actuator requiring zero compressed air supply. Features digital display, auto-tuning calibration, and Modbus RTU.
Electric Cage-Guided Severe Duty Pressure-Balanced Control Valve
Heavy-duty electric actuator with thrust rating up to 45 kN coupled with a cage-guided balanced trim for precise regulation across severe pressure drops.
Micro-Flow Precision Chemical Metering Control Valve
Engineered for micro-metering of chemical inhibitors, catalyst injection, and pilot plant laboratories with interchangeable precision needle trims.
Multi-Stage Pressure Reducing Anti-Noise Severe Service Control Valve
Multi-turn tortuous path labyrinth disc stack divides pressure drop into numerous small stages, completely preventing aerodynamic noise and sonic vibration.
Cryogenic Extended Bonnet Low-Temperature Throttling Control Valve
Extended thin-walled stainless column maintains stuffing box temperature within normal packing operating limits in LNG and cryogenic air separation.
High Temperature Superheated Steam Desuperheater Control Valve
Equipped with variable-area atomizing spray nozzles for precise temperature desuperheating in thermal power turbine bypass systems.
Rotary Eccentric Plug (Camflex Type) Severe Erosive Control Valve
Eccentric rotary plug lifts away from seat during opening rotation, combining globe valve throttling accuracy with ball valve unobstructed slurry passage.
Engineered Regulating & Severe-Service Trims
Precision throttling solutions matching pressure drops, acoustic noise reduction, and severe flashing conditions.
Multi-Stage Drilled Cage Staging
Breaks high pressure differential across successive concentric radial hole stages, ensuring local static pressure remains safely above fluid vapor pressure to completely prevent cavitation damage.
Tortuous Path Labyrinth Disc Stack
Multi-turn etched tortuous channels force gas or steam through friction pressure dissipation, limiting acoustic exit velocity below Mach 0.3 and attenuating noise by up to 30 dBA.
Hydroformed Metal Bellows Zero Emission
Multi-ply Inconel 625 or SS316Ti hydroformed bellows seal creates a hermetic mechanical barrier, fully satisfying ISO 15848-1 Class AH and TA-Luft for toxic, flammable, and lethal process chemicals.
Smart Digital Diagnostic Positioners
Equipped with Emerson Fisher FIELDVUE or Siemens SIPART smart positioners supporting 4-20mA HART, Modbus, and automated Partial Stroke Testing (PST) for predictive plant asset maintenance.
Explore All 4 Control Valve Sub-Categories
1:1 aligned with TSV factory catalog. Precision throttling and pressure reduction solutions for automated process plants.
Pneumatic Diaphragm Control Valve
Multi-spring pneumatic diaphragm actuator with electro-pneumatic positioner for linear and EQ% curves.
Current Series View Page Top ↑Cage Guided Control Valve
Drilled multi-hole labyrinth cage distributing high pressure differential to prevent cavitation erosion.
Anti-Cavitation View Cage Guided Valve →Self-Operated Regulating Valve
Direct energy-harvesting pressure reducing regulator maintaining downstream stability without power supply.
Self-Operated View Self-Operated Regulator →Electric Modulating Control Valve
Electronic intelligent modulating multi-turn actuator accepting direct 4-20mA or Profibus control loops.
Electric Modulating View Electric Control Valve →Request Control Valve Sizing & Data Sheet
Submit your process conditions (Inlet P1, Outlet P2, Flow Q, Medium, Temperature). Our application engineering department will generate complete ISA 75 sizing calculation sheets.
