Severe Operating Challenges & Countermeasures
How TSV advanced metallurgy, certified low-emission sealing, and computational fluid design overcome the most unforgiving operating realities in Desalination, Chemical & Offshore Platforms.
High Chloride Pitting & Crevice Corrosion (PREN Deficiencies)
Warm seawater and high-pressure brine rapidly induce crevice corrosion beneath gaskets and valve stems made of standard 316 stainless. TSV utilizes certified Super Duplex (ASTM A182 F53/F55) with PREN ≥ 42 guarantee.
Offshore Topsides Space & Weight Critical Constraints
Floating Production Storage and Offloading (FPSO) vessels require minimal structural weight and compact footprint. Our triple offset and dual plate wafer valves reduce installed weight by up to 65% versus traditional gate valves.
Microbiologically Induced Corrosion (MIC) & Marine Fouling
Sulfate-reducing bacteria (SRB) in marine biofilm cause rapid localized pitting under deposits. We supply Nickel Aluminum Bronze (NAB - ASTM B148 C95800) offering natural bio-repelling anti-fouling characteristics.
High-Pressure Reverse Osmosis (SWRO) Energy Recovery Surge
Seawater desalination high-pressure membranes operate up to 83 bar with frequent pump cycles. Our quick-response non-slam check valves eliminate cavitation water hammer in energy recovery device (ERD) headers.
Engineered Valve Selection Matrix
Recommended valve types, body metallurgy, and trim specifications across core operating units.
| Process Unit / Service | Recommended Valve Model | Size & Pressure Class | Body MOC | Trim & Seating |
|---|---|---|---|---|
| SWRO Membrane High-Pressure Feed | Super Duplex 2507 Trunnion Ball Valve | NPS 4" - 20", Class 600-900 | ASTM A182 F53 (UNS S32750) Super Duplex | Duplex Trim with PEEK Seating |
| FPSO Marine Seawater Cooling Intake | Nickel Aluminum Bronze Butterfly Valve | NPS 8" - 36", Class 150 | ASTM B148 C95800 Nickel Aluminum Bronze | Monel 400 Stem & Resilient EPDM Liner |
| Brine Reject Energy Recovery System | Retainerless Dual Plate Check Valve | NPS 6" - 24", Class 600-900 | ASTM A995 Gr. 5A (Super Duplex) | Inconel 625 Inconel Spring & Disc Facing |
| Offshore Chemical Injection Skid | Titanium Double Block & Bleed Manifold | NPS 1/2" - 2", Class 1500-2500 | ASTM B348 Titanium Grade 2 / Grade 5 | Solid Titanium Ball & PEEK Seats |
Core Valve Models for Desalination, Chemical & Offshore Platforms
Heavy-duty severe service valves tested and certified for continuous plant availability.
Global Project Track Record
Trusted by major international energy operators, state oil companies, and tier-1 EPC contractors.
Taweelah Seawater Reverse Osmosis (RO) Desalination
480+ Super Duplex 2507 Ball & Dual Plate Check Valves
Application: High-Pressure Seawater Feed & Brine Reject Headers
Chile Coastal Seawater Pipeline & Mining Infrastructure
Heavy-Duty Flanged & Wafer Valves, Super Duplex & Hard-Faced Trim for Corrosive Saline Service
Application: Coastal Seawater Intake & High-Elevation Tailings Pipelines (Factory Audited & FAT Passed)
Saline Water Conversion Corp (SWCC) Jubail Phase 3
NPS 12" - 30" Dual Plate Wafer Checks & Lug Butterflies
Application: Municipal Seawater Desalination Plant

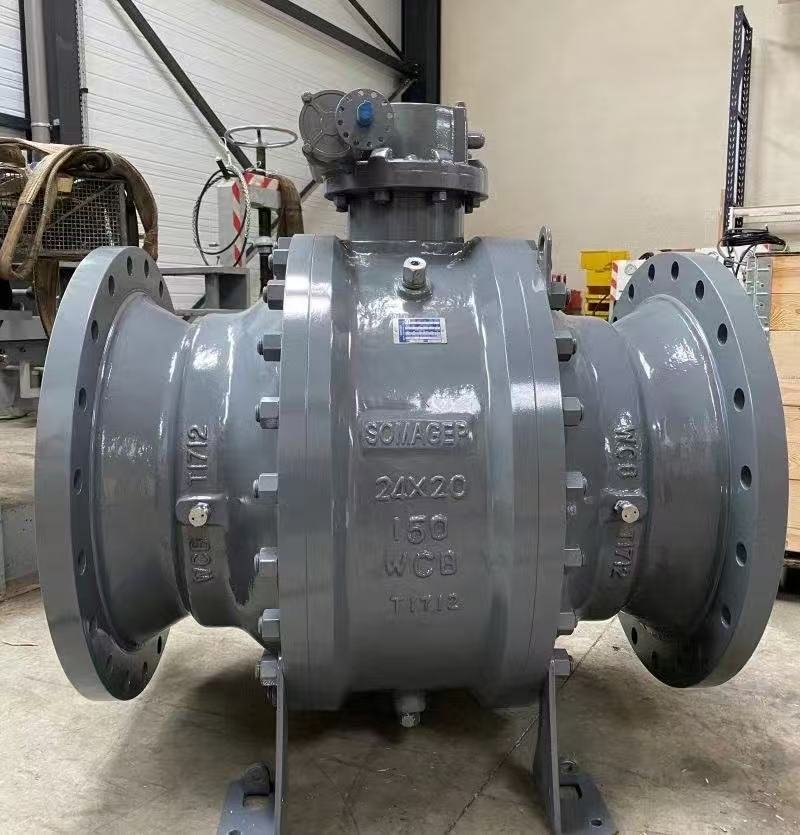

Coastal Desalination & Sea Water Intake Buried Installations
Large-bore pipeline ball valves, butterfly valves, and check valves designed for harsh saline immersion and buried soil service with zero external maintenance.
Consult with TSV Application Specialists for Desalination, Chemical & Offshore Platforms
Send your project process data sheet, fluid media composition, operating pressures, and piping class requirements. Our senior valve design team provides certified MTCs, finite element analysis (FEA) reports, and commercial bids within 24 hours.
