Engineering Highlights
Regulate & Control Valves Design & Manufacturing Scope
Manufactured strictly in compliance with international standards, backed by certified raw material heat numbers, optical emission spectrometry, and full hydrostatic pressure trials.
Regulate & Control Valves Core Sub-Categories & Models
Select a specialized sub-category below to inspect individual engineering models, face-to-face dimensions, torque curves, and model-specific material selections.
Severe Service Design Advantages
How TSV Regulate & Control Valves deliver continuous bubble-tight shutoff, zero fugitive emissions, and decades of operational safety in harsh operating environments.
Multi-Stage Anti-Cavitation & Low-Noise Trims
Multi-hole tortuous path cages break pressure drops into discrete staging steps, eliminating vapor pocket collapse and acoustic noise.
High Rangeability & Equal Percentage Contours
Modulating trims deliver 50:1 control rangeability with certified linear, equal percentage, and modified quick-opening characteristics.
High-Thrust Pneumatic Multi-Spring Diaphragms
Reinforced rolled diaphragms paired with smart HART / Foundation Fieldbus digital positioners achieve <0.2% positioning deadband.
Severe Flashing & Erosion Protection
Solid tungsten carbide or ceramic plug-cage combinations defend critical trim surfaces against high-velocity two-phase flashing streams.
Frequently Asked Questions for Regulate & Control Valves
Answers to common questions from EPC pipeline engineers, instrument technicians, and international sourcing managers.
How does TSV calculate the required control valve Cv value?
We utilize IEC 60534-2-1 / ISA 75.01 computational algorithms based on maximum, normal, and minimum flow rates, inlet/outlet pressures, media specific gravity, vapor pressure, and Reynolds numbers.
What is the difference between flashing and cavitation in control valves?
Cavitation occurs when fluid pressure drops below vapor pressure then recovers above it, collapsing vapor bubbles with violent shockwaves. Flashing occurs when downstream pressure remains below vapor pressure, leaving two-phase vapor-liquid erosion.
Are TSV control valves equipped with smart diagnostic positioners?
Yes. We integrate Emerson Fisher FIELDVUE, Siemens SIPART, or ABB smart digital positioners supporting HART 7 and Profibus communication with partial stroke testing (PST).
IEC 60534 Severe-Service Control Valve CAD Blueprint
Detailed cross-section of TSV globe and eccentric rotary control valves equipped with multi-stage anti-cavitation cages, low-noise labyrinth disks, and smart electro-pneumatic positioners.
Key Engineering Mechanics & Standard Adherence
Precision-engineered components verified by finite element analysis (FEA) and witnessed hydro tests:
Drilled Multi-Hole Restrictive Cage
Splits flow into dozens of opposing micro-jets that impinge in the center of the cage, dissipating energy away from metal walls.
Class V & VI Metal/Soft Sealing
Precision machined seat plug delivers tight shutoff under severe thermal cycling and high differential pressures.
Anti-Hunting Balanced Plug Design
Pressure-balanced trim reduces actuator thrust requirement by 70%, preventing hunting, stiction, and actuator motor stalling.
Hardened Stellite / Tungsten Carbide Trim
High-wear trim components fabricated from solid tungsten carbide or Stellite Gr.6 for severe erosive sand slurry duty.

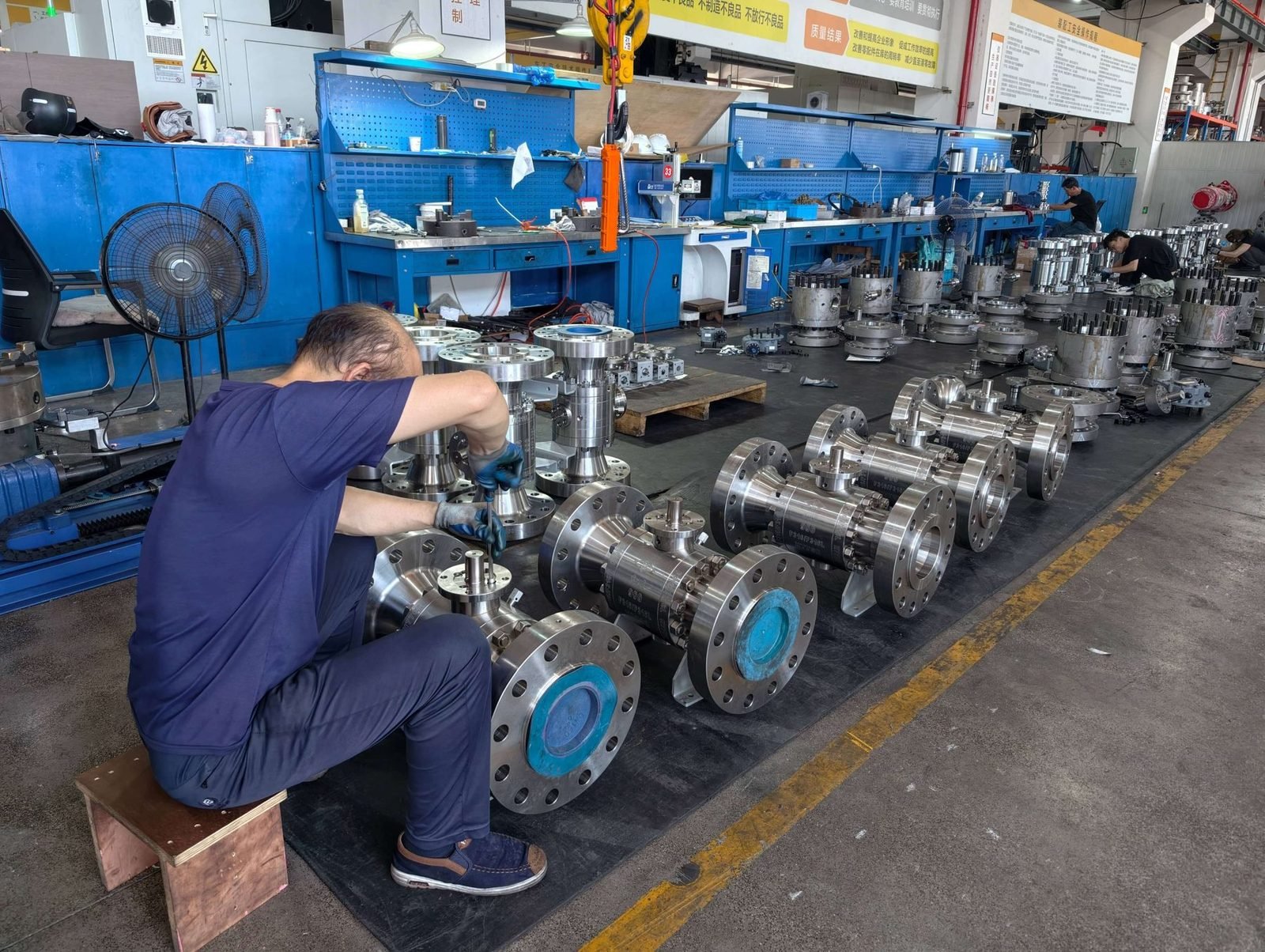

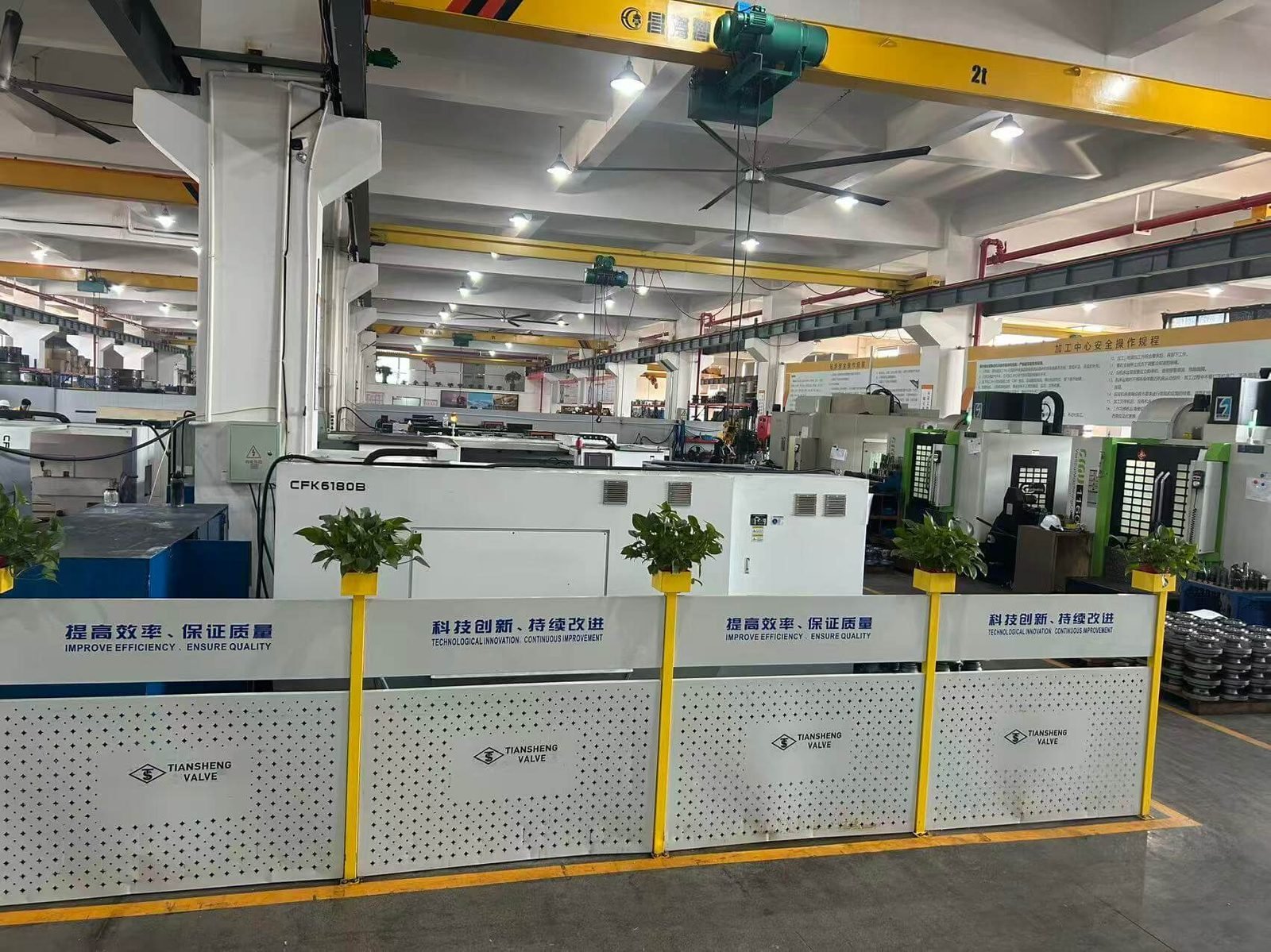

Machining Precision & Certified Hydrostatic Witness
Request a Formal Engineering Quote for Regulate & Control Valves
Submit your project bill of quantities (BOQ), pipeline data sheet, or target MOC specifications. TSV's application engineering team provides certified dimensional drawings, MTC documentation, and firm export pricing within 24 hours.
