Severe Operating Challenges & Countermeasures
How TSV advanced metallurgy, certified low-emission sealing, and computational fluid design overcome the most unforgiving operating realities in Cryogenic & LNG Terminals (-196°C).
Extreme Material Brittleness (Ductile-to-Brittle Transition)
Carbon and low-alloy steels shatter like glass under cryogenic temperatures. TSV specifies high-purity austenitic stainless steels (ASTM A351 CF8M / CF3M / ASTM A182 F316L) with Charpy V-notch impact energy >60 J at -196°C.
Stem Packing Freeze-Up & Atmospheric Ice Formation
Moisture in ambient air condensing on sub-zero stems forms rigid ice collars that destroy packing rings and seize actuator motion. Our BS 6364 extended bonnets create an insulating gas vapor column that keeps packing ambient.
Thermal Shrinkage & Seat Cold Seizure
Differential thermal contraction coefficients between polymer seats and metallic bodies cause seat crushing or gap opening. We engineer PCTFE (Kel-F) and spring-energized polymer lip seals with thermal expansion clearance.
Overpressurization from Trapped Liquid Expansion
1 m³ of liquid methane trapped in a closed valve cavity vaporizes and expands 600-fold, creating explosive hydraulic pressures exceeding 2000 bar. TSV ball valves feature internal cavity automatic pressure relief venting.
Engineered Valve Selection Matrix
Recommended valve types, body metallurgy, and trim specifications across core operating units.
| Process Unit / Service | Recommended Valve Model | Size & Pressure Class | Body MOC | Trim & Seating |
|---|---|---|---|---|
| LNG Liquefaction Cold Box | Extended Bonnet Trunnion Ball Valve | NPS 2" - 36", Class 150-900 | ASTM A351 CF8M / CF3M Low-Carbon Stainless | PCTFE / Devlon Lip-Seals + 316 Trim |

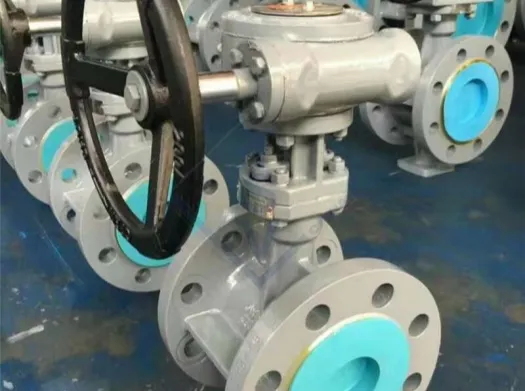

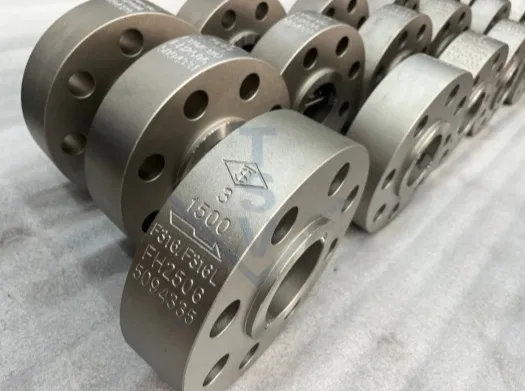

| LNG Receiving Terminal Jetty Unloading | Triple Offset Cryogenic Butterfly Valve | NPS 8" - 48", Class 150-300 | ASTM A351 CF8M with Stellite Welded Seat | 316L / Graphite Flexible Laminate |
| Cryogenic Ethylene Tank Storage | Cryogenic Dual Plate Wafer Check Valve | NPS 3" - 24", Class 150-600 | ASTM A351 CF8M Body & Disc | Inconel X-750 Cryogenic Torsion Springs |
| Liquid Nitrogen Storage & Vaporizer | Extended Stem Forged Globe Valve | NPS 1/2" - 2", Class 800-1500 | ASTM A182 F316L Forged Stainless | PCTFE Soft Insert / Stellite Ground Plug |
Core Valve Models for Cryogenic & LNG Terminals (-196°C)
Heavy-duty severe service valves tested and certified for continuous plant availability.
Global Project Track Record
Trusted by major international energy operators, state oil companies, and tier-1 EPC contractors.
Zhoushan LNG Receiving Terminal Phase II
180+ Cryogenic Extended Bonnet Ball & Butterfly Valves
Application: -162°C Liquefied Natural Gas Storage & Bunkering
Ras Laffan Cryogenic Ethylene Export Expansion
Class 300/600 NPS 6" - 24" Cryogenic Ball Valves
Application: Refrigerated Liquid Ethylene Tank Headers
Zeebrugge LNG Regasification Terminal
BS 6364 Class 150/300 Triple Offset Butterfly Valves
Application: LNG Submerged Combustion Vaporizers
LNG Receiving Terminals & Cryogenic Air Separation Plants
Extended bonnet vapor columns insulate the gland packing from cryogenic boil-off, preventing stem freezing and guaranteeing BS 6364 helium leakage thresholds.
Consult with TSV Application Specialists for Cryogenic & LNG Terminals (-196°C)
Send your project process data sheet, fluid media composition, operating pressures, and piping class requirements. Our senior valve design team provides certified MTCs, finite element analysis (FEA) reports, and commercial bids within 24 hours.
