Severe Operating Challenges & Countermeasures
How TSV advanced metallurgy, certified low-emission sealing, and computational fluid design overcome the most unforgiving operating realities in Superheated Steam & Power Generation.
Supercritical Creep Rupture & Microstructural Graphitization
Main steam temperatures exceeding 600°C induce severe creep deformation in conventional carbon steels. TSV utilizes creep-strength enhanced ferritic (CSEF) alloys (ASTM A182 F91, F92, P91) with certified hot tensile curves.
High-Pressure Thermal Cycling & Bonnet Gasket Leaks
Frequent plant ramp-ups and cycling generate extreme thermal expansion mismatches across flanged joints. Our Pressure Seal bonnet utilizes internal system pressure against a flexible silver-plated nickel gasket.
High-Velocity Steam Wire-Drawing Across Seats
High differential pressure drops across globe and bypass valves produce sonic steam velocities that cut through standard trim surfaces. We employ solid Stellite 6/21 facing with 42+ HRC hardness.
Boiler Feedwater Reverse Flow & Pump Destruction
Sudden boiler feed pump trips permit multi-megawatt reverse hydraulic surges. TSV fast-closing assisted non-slam tilting-disc check valves isolate reverse flow before momentum reversal occurs.
Engineered Valve Selection Matrix
Recommended valve types, body metallurgy, and trim specifications across core operating units.
| Process Unit / Service | Recommended Valve Model | Size & Pressure Class | Body MOC | Trim & Seating |
|---|---|---|---|---|

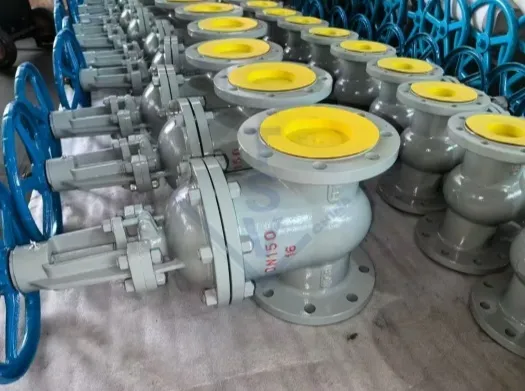

| Main Steam Isolation | Pressure Seal Parallel Slide Gate Valve | NPS 8" - 24", Class 1500-2500 | ASTM A182 F91 / A217 C12A Creep Steel | Solid Stellite Gr. 6 Sliding Discs |
| Boiler Feedwater High-Pressure Pump Discharge | Pressure Seal Tilting Disc Check Valve | NPS 6" - 20", Class 1500-2500 | ASTM A216 WCC / A105 Forged Steel | Inconel Clad Seats & Dampening Dashpot |
| Continuous Steam Blowdown | Heavy-Duty Multi-Step Globe Valve | NPS 1" - 4", Class 900-2500 | ASTM A182 F22 Chrome-Moly Forged | Tungsten Carbide Multi-Stage Throttle Plug |
| Turbine Extraction Steam | Quick-Closing Pneumatic Check Valve | NPS 12" - 36", Class 150-300 | ASTM A216 WCB Cast Carbon Steel | 13Cr / Stellite Trim with Power Assist |
Core Valve Models for Superheated Steam & Power Generation
Heavy-duty severe service valves tested and certified for continuous plant availability.
Global Project Track Record
Trusted by major international energy operators, state oil companies, and tier-1 EPC contractors.
Huaneng 2x1000MW Ultra-Supercritical Power Station
Class 2500 F91 Pressure Seal Gate & Globe Valves
Application: Main Steam & Hot Reheat Headers (605°C / 26 MPa)
Indonesia Jawa-7 2x1050MW Coal-Fired Project
High-Pressure Feedwater Isolation & Non-Return Valves
Application: Boiler Feed Pump Skid & High-Pressure Heaters
Vietnam Vinh Tan Thermal Power Complex
Class 900/1500 Cast Chrome-Moly Gate & Check Valves
Application: Superheated Steam Turbine Bypass Lines
Supercritical Boiler Steam Lines & Turbine Bypass Installations
Zero-leakage isolation for main steam lines operating up to +570℃ and 25 MPa differential pressure, equipped with high-temperature graphite seals and Stellite hardfacing.
Consult with TSV Application Specialists for Superheated Steam & Power Generation
Send your project process data sheet, fluid media composition, operating pressures, and piping class requirements. Our senior valve design team provides certified MTCs, finite element analysis (FEA) reports, and commercial bids within 24 hours.
