Engineering Highlights
Valve Fittings & Pipeline Accessories Design & Manufacturing Scope
Manufactured strictly in compliance with international standards, backed by certified raw material heat numbers, optical emission spectrometry, and full hydrostatic pressure trials.
Valve Fittings & Pipeline Accessories Core Sub-Categories & Models
Select a specialized sub-category below to inspect individual engineering models, face-to-face dimensions, torque curves, and model-specific material selections.
Severe Service Design Advantages
How TSV Valve Fittings & Pipeline Accessories deliver continuous bubble-tight shutoff, zero fugitive emissions, and decades of operational safety in harsh operating environments.

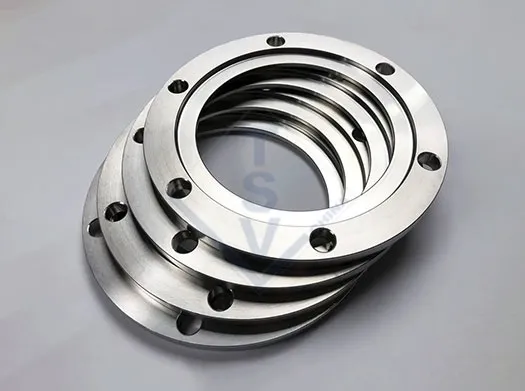

High-Pressure Forged Steel Flanges
Weld neck, slip-on, blind, and RTJ flanges hot-forged from certified ingots, adhering to ASME B16.5 dimensions up to Class 2500.
Butt-Weld Piping Components
Elbows, tees, and concentric/eccentric reducers forged to ASME B16.9 with 100% bevel inspection and bevel weld-end prep.

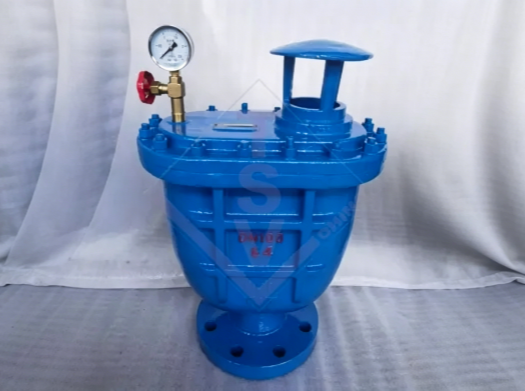

Automated Air Release & Vacuum Relief
Dual-orifice kinetic air valves discharge large air volumes during pipeline filling and break catastrophic pipeline vacuums.
Multi-Ply Metal Expansion Bellows
Formed to EJMA standards to absorb thermal pipeline elongation, vibration, and seismic ground settlement.
Frequently Asked Questions for Valve Fittings & Pipeline Accessories
Answers to common questions from EPC pipeline engineers, instrument technicians, and international sourcing managers.
What flange face finishes does TSV provide?
We manufacture Smooth Finish (125-250 Ra) for spiral wound gaskets and Ring Type Joint (RTJ) grooves with optical surface finishes for high-pressure gas service Class 600+.
What material grades are stocked for pipe fittings?
ASTM A105, A350 LF2, A182 F304/F316, F51 Duplex, and high-yield pipeline grades including ASTM A694 F52, F60, and F65.
How do air release valves protect liquid pipelines?
Entrained air creates air pockets that restrict flow, increase pumping power by up to 30%, and cause severe water hammer when pockets move. Air valves purge these pockets automatically.
ASME High-Pressure Forged Fittings & Flanges CAD Blueprint
Engineering dimensions and manufacturing tolerances for TSV forged steel socket weld, threaded fittings, and ASME B16.5 pipe flanges rated Class 150 to Class 2500.
Key Engineering Mechanics & Standard Adherence
Precision-engineered components verified by finite element analysis (FEA) and witnessed hydro tests:
Forged Grain Flow Alignment
Precision closed-die forging aligns steel grain structure with stress trajectories, maximizing impact toughness at -46℃ to +450℃.
Strict Dimensional Conformity
Machined to ASME B16.11, MSS SP-79, and MSS SP-97 with rigorous thread gauge verification (NPT per ASME B1.20.1).
NACE MR0175 Compliance
Low-carbon metallurgy and controlled hardness (<22 HRC) prevent sulfide stress cracking in sour gas processing facilities.
Complete 3.1 Traceability
Direct die-stamped heat number, pressure class, material grade, and brand monogram on every single fitting.

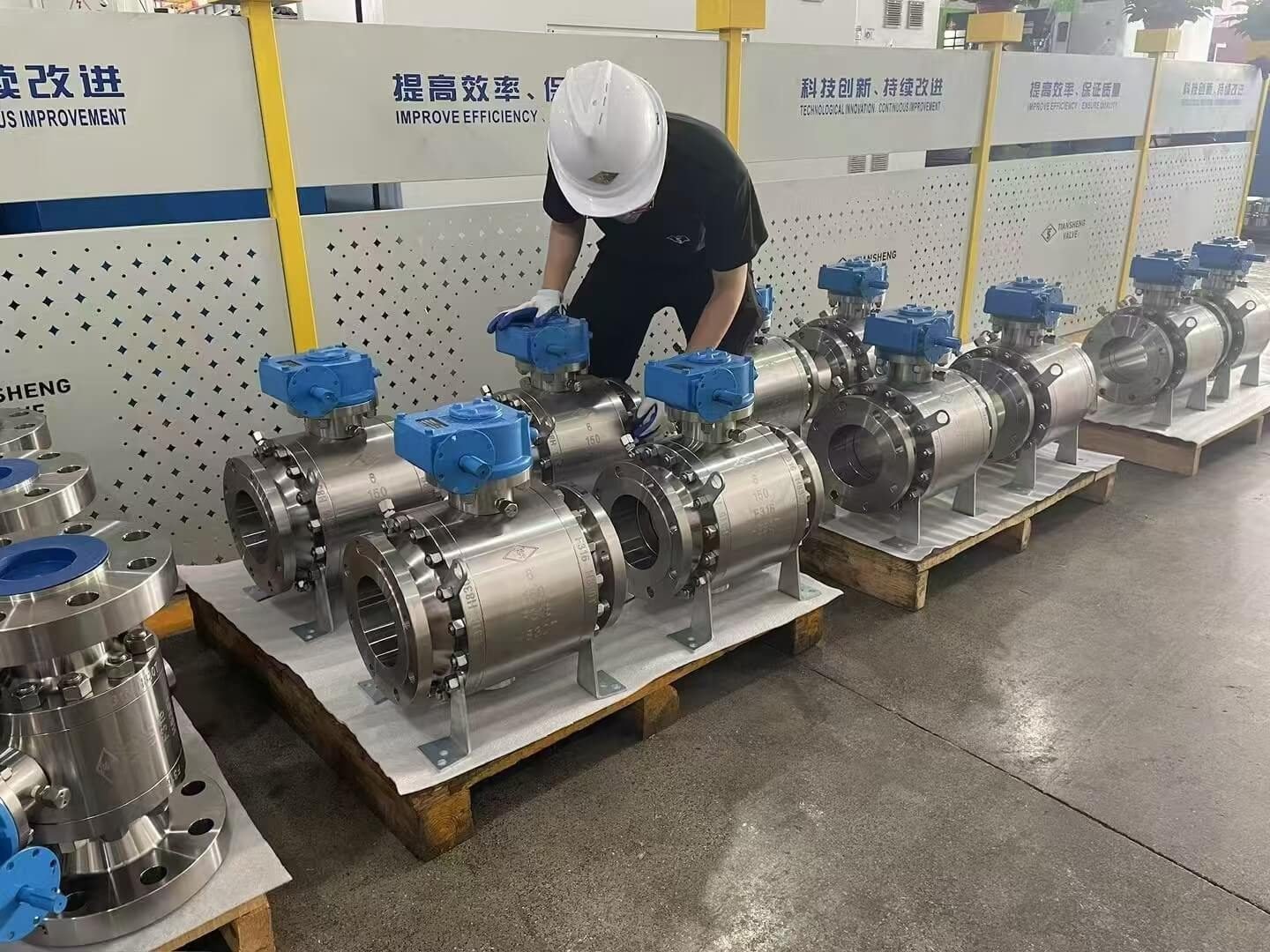

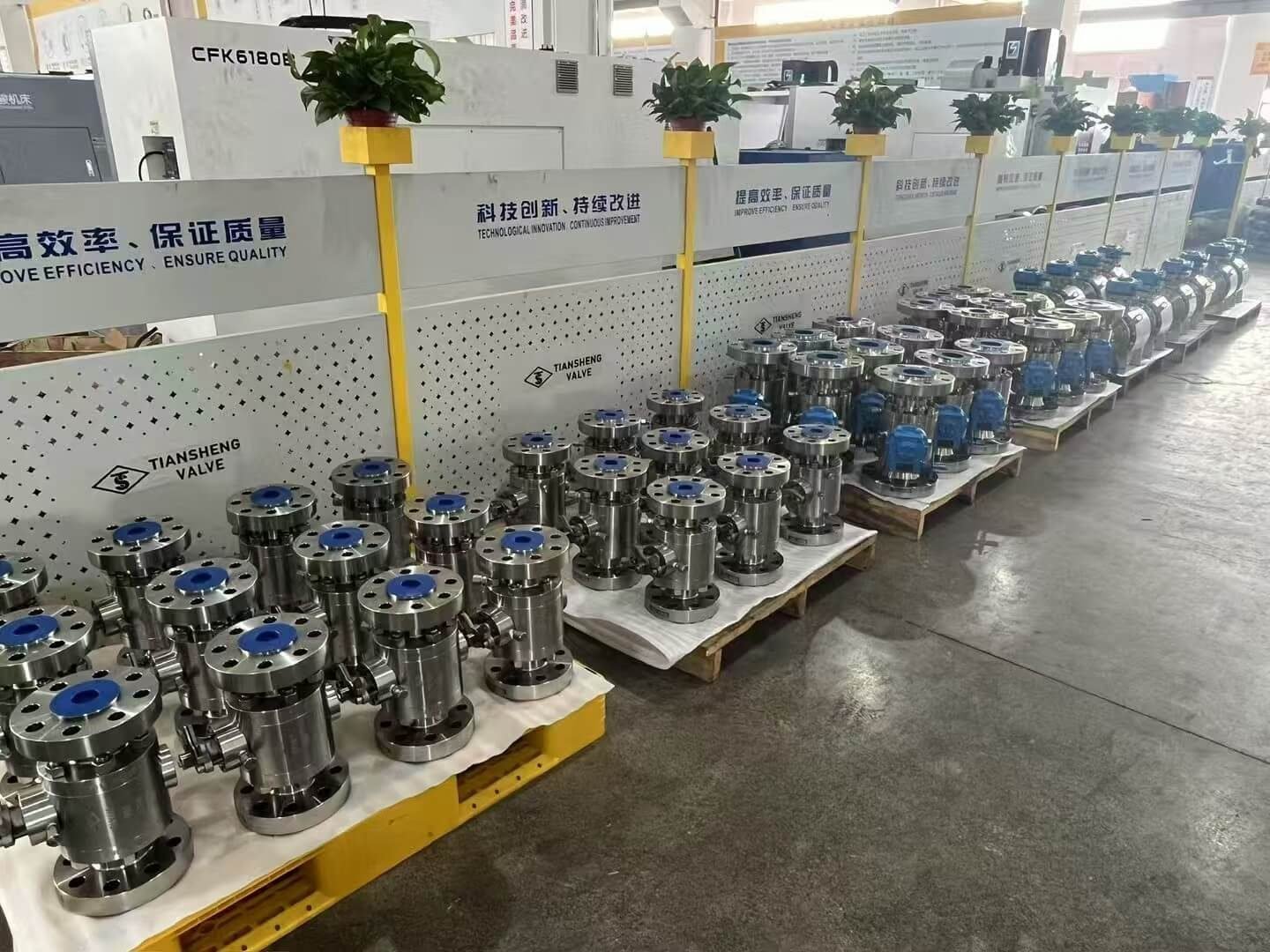

Machining Precision & Certified Hydrostatic Witness
Request a Formal Engineering Quote for Valve Fittings & Pipeline Accessories
Submit your project bill of quantities (BOQ), pipeline data sheet, or target MOC specifications. TSV's application engineering team provides certified dimensional drawings, MTC documentation, and firm export pricing within 24 hours.
