Severe Operating Challenges & Countermeasures
How TSV advanced metallurgy, certified low-emission sealing, and computational fluid design overcome the most unforgiving operating realities in Refining & Petrochemical Units.
Fluid Catalytic Cracking (FCC) Catalyst Slurry Erosion
Microscopic zeolite catalyst fines traveling at 30 m/s severely erode metal surfaces, causing rapid body wall thinning and seat wash-out. TSV employs supersonic HVOF tungsten carbide coatings (68-72 HRC).
Thermal Binding in Delayed Coking Switch Operations
Valves operating in 480°C hot heavy residues suffer extreme thermal shock during steam stripping and water quenching cycles. TSV metal seats incorporate wave-spring thermal compensation.
High-Pressure High-Temperature Hydrocracking (H2 + H2S)
Severe Nelson curve hydrogen attack causes catastrophic embrittlement. TSV supplies ASTM A217 WC9 / C12A forged bodies with full post-weld heat treatment (PWHT) and ultrasonic examination.
Volatile Organic Compound (VOC) Fugitive Emissions
Environmental EPA Consent Decrees mandate <100 ppmv stem emissions. Live-loaded graphite packing systems certified to API 622/624 and ISO 15848-1 guarantee leak-free operation.
Engineered Valve Selection Matrix
Recommended valve types, body metallurgy, and trim specifications across core operating units.
| Process Unit / Service | Recommended Valve Model | Size & Pressure Class | Body MOC | Trim & Seating |
|---|---|---|---|---|

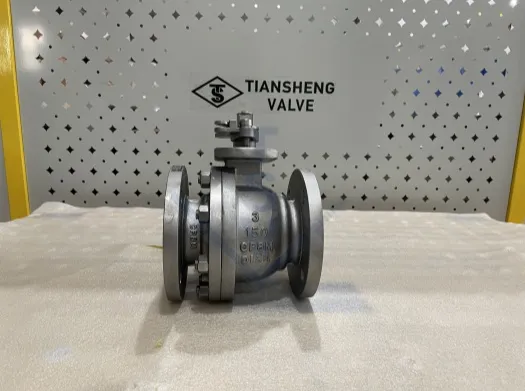

| FCC Bottoms Slurry Line | Metal-Seated Severe Service Ball Valve | NPS 3" - 16", Class 300-600 | ASTM A351 CF8M / 316H Stainless Steel | Tungsten Carbide HVOF Hardfacing |
| Delayed Coker Overhead Vapor | API 600 Flexible Wedge Gate Valve | NPS 4" - 24", Class 300-900 | ASTM A217 Gr. C5 / C12 Chrome-Moly | Stellite Gr. 6 Overlay on Wedge & Seats |

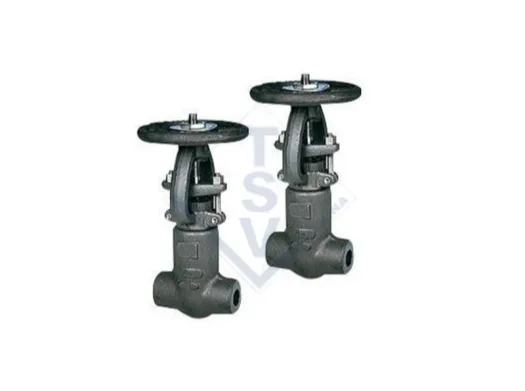

| Hydrocracker High-Pressure Loop | Pressure Seal Bonnet Gate & Globe Valve | NPS 2" - 12", Class 1500-2500 | ASTM A182 F22 / F91 Forged Alloy Steel | Stellite 21 Hardfaced Disc & Seat |

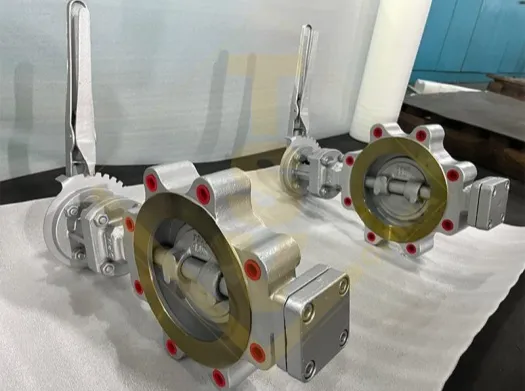

| Ethylene Cracking Furnace Decoking | High-Performance Triple Offset Butterfly | NPS 6" - 36", Class 150-600 | ASTM A351 HK40 / Incoloy 800H | Solid Stellite Seat & Disc Edge |
Core Valve Models for Refining & Petrochemical Units
Heavy-duty severe service valves tested and certified for continuous plant availability.
Global Project Track Record
Trusted by major international energy operators, state oil companies, and tier-1 EPC contractors.
ENERGY MACHINE Heavy Hydrocarbon Valve Framework
1,000+ Units Cumulative Supply, Up to Class 900 NPS 32" SS316 & Alloy Steel Gate, Globe & Ball Valves
Application: Severe Hydrocarbon Manifolds & High-Temperature Refining Process Units

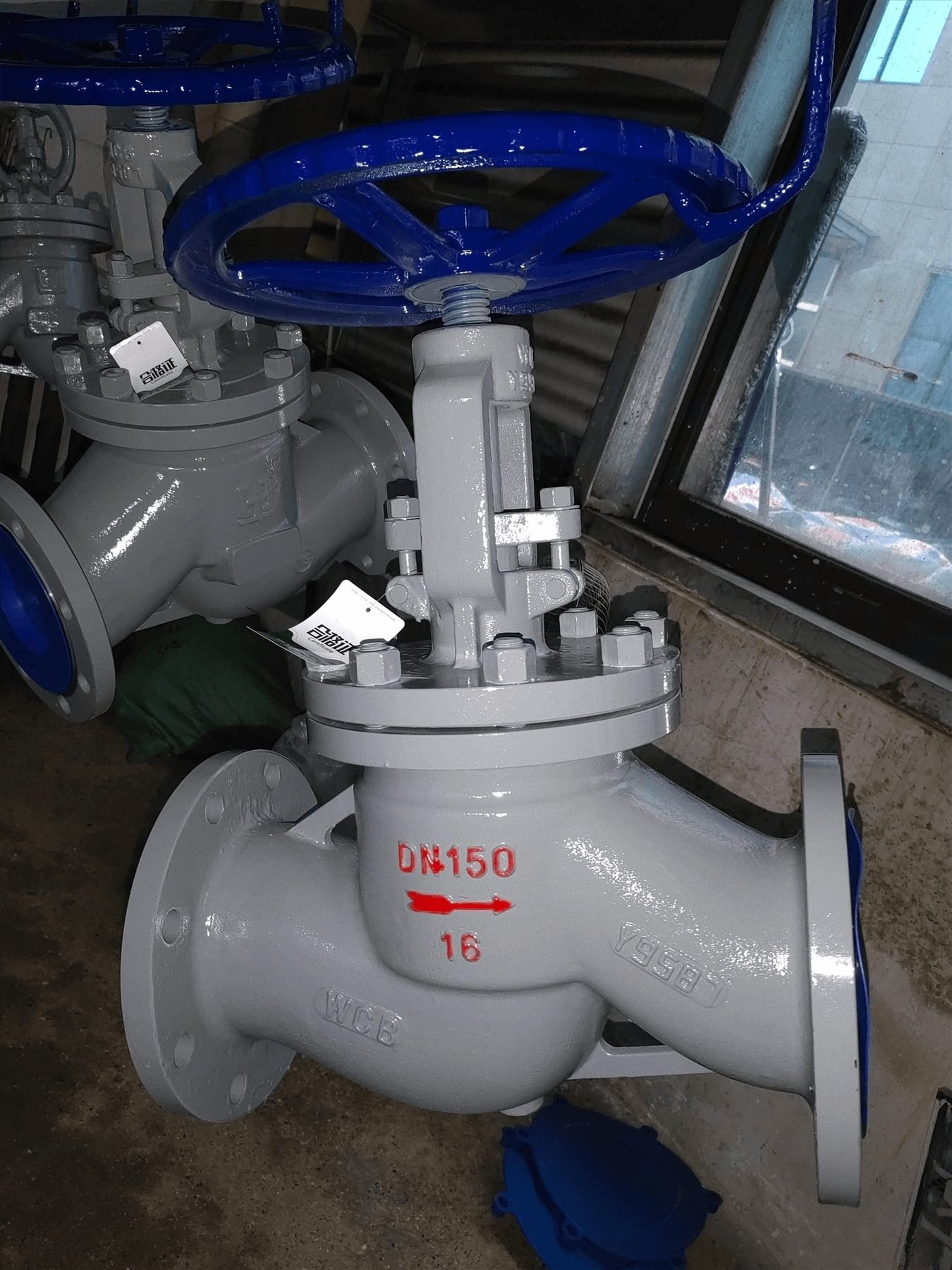

Repsol Cartagena Refinery Upgrade

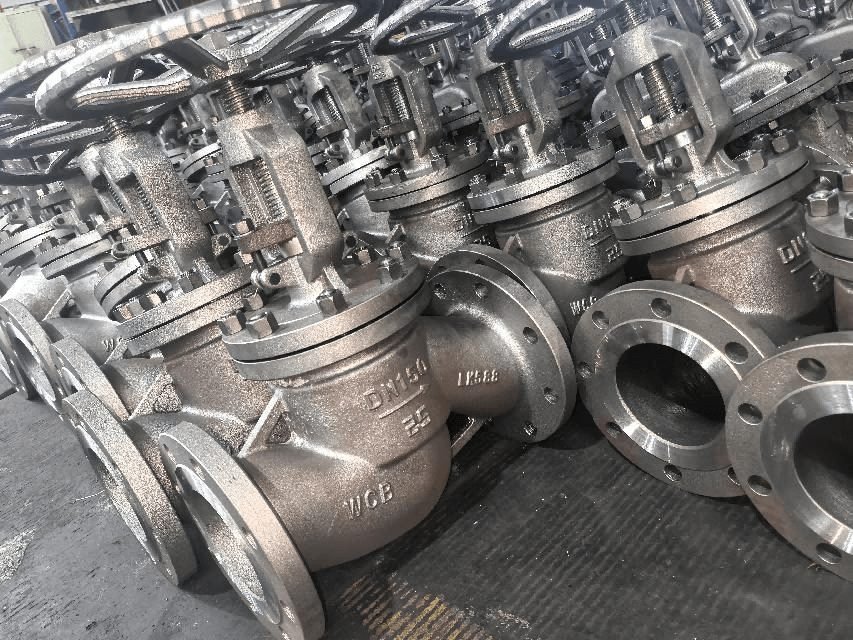

Class 900 Alloy Steel Gate & Globe Valves (NPS 2" - 16")
Application: Delayed Coking Overhead Vapor Headers
Reliance Jamnagar Refinery Expansion
Class 600/1500 Severe Service Slurry Ball Valves
Application: FCC Slurry Settler Bottoms Isolation
Crude Distillation & Catalytic Cracker Unit Field Applications
Engineered to withstand cyclic coke formation, hydrogen embrittlement, and hot sulfur corrosion conforming to API 600, API 623, and NACE MR0175.
Consult with TSV Application Specialists for Refining & Petrochemical Units
Send your project process data sheet, fluid media composition, operating pressures, and piping class requirements. Our senior valve design team provides certified MTCs, finite element analysis (FEA) reports, and commercial bids within 24 hours.
