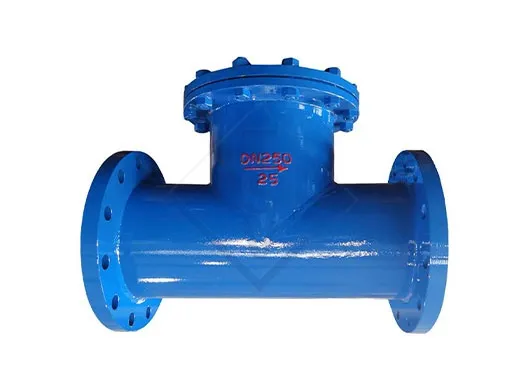

Industrial T-Type Pipeline Strainers
Engineered for tight plant layouts and vertical piping drops. TSV fabricated and cast T-strainers offer ultra-low pressure drop and easy cover access without disturbing piping alignment, making them the standard choice for offshore skids and compressor stations.
Design Criteria & Manufacturing Specifications
Manufactured strictly to international piping and pressure vessel codes with 100% material traceability, positive material identification (PMI), and certified EN 10204 3.1 inspection protocols.
| Engineering Parameter | Applicable Codes, Standards & Design Criteria |
|---|---|
| Design Standards | ASME B16.34, ASME Section VIII Div 1, ASME B31.3 |
| Flow Orientation | Straight-Through In-Line or 90-Degree Angle Tee Orientation |
| End Connections | ASME B16.5 Flanged RF / RTJ, ASME B16.25 Butt-Weld Ends |
| Testing Standard | API 598 / ISO 5208 (Hydrostatic test at 1.5x design pressure) |
| Body Metallurgy | ASTM A106 Gr. B / A234 WPB, ASTM A312 TP316L, A333 Gr. 6, A182 F316 |
| Perforated Screen Element | Heavy Gauge 304/316 Stainless Steel with Optional Wire Mesh Wrap |
| Cover Closure Styles | Bolted Blind Flange with Davit Assembly or Quick-Actuating Closure |
| Gauge Tappings | Integrated 1/2" or 3/4" NPT / Flanged High & Low Pressure Gauge Taps |
Complete T-Type Pipeline Strainer Models & Technical Capabilities
Custom-fabricated and cast T-pattern strainers engineered for tight piping envelopes, low head loss, and easy screen withdrawal.
In-Line Fabricated Straight-Through T-Strainer
Compact in-line configuration allowing direct installation in straight piping runs with minimal face-to-face footprint and straight-out basket removal.
Heavy Welded High-Pressure Tee Type Strainer
Heavy-wall butt-weld fabricated tee strainer engineered for gas transmission headers and high-pressure steam utility stations up to Class 1500.
Angle Pattern 90-Degree Elbow T-Strainer
Combines a 90-degree pipe elbow and high-capacity strainer into a single component, eliminating pipe fittings and reducing installation costs in pump suction piping.
T-Type Compact Pipeline Debris Interception Dynamics
Designed specifically for skid packaging and tight plant spaces where traditional Y-strainers cannot provide clean screen extraction clearance.
Straight-Out Screen Extraction
Unlike Y-strainers which require angular withdrawal room, the T-strainer basket extracts directly perpendicular to the pipeline, ideal for installations close to floors, walls, and skids.
Double-Duty Elbow Fitting Replacement
Our 90-degree angle pattern T-strainer functions simultaneously as an engineered pipeline elbow and a protective filtration unit, eliminating two flanged joints and reducing system pressure drop.
Custom Hydrodynamic Flow Vanes
For large diameter gas and high-velocity water applications, TSV incorporates internal guide vanes to equalize fluid velocity across the full mesh surface and eliminate localized turbulence erosion.
Explore All 4 Pipeline Strainer Sub-Categories
1:1 aligned with TSV factory catalog. Severe-service filtration solutions for process piping, power generation, and pump protection.
Y-Type Pipeline Strainers
Compact ASME Class 150-2500 Y-strainers for liquid, gas, and steam lines with blow-off ports.
Y-Pattern View Y-Type Pipeline Strainers →Basket Strainers
Large debris holding capacity simplex and duplex switchable basket strainers for pump protection.
High Capacity View Basket Strainers →T-Type Strainers
Compact right-angle and straight-through tee type strainers with quick-release blind covers.
Current Series View Page Top ↑Temporary & Special Strainers
Conical witch's hat, wafer basket, and custom start-up commissioning filters for new lines.
Start-Up Cone View Temporary & Special Strainers →Request Technical Quotation & Sizing Calculation
Submit your piping conditions, mesh/micron requirements, and project schedule. Our pipeline filtration engineers will return verified submittal drawings and commercial quotation within 24 hours.
