Industrial Basket Pipeline Strainers
Engineered for heavy debris loading in pump suction lines, cooling water intake, and bulk fuel handling. Vertical cylindrical body provides massive basket volume, allowing large particulate accumulation without choking pipeline throughput.
Design Criteria & Manufacturing Specifications
Manufactured strictly to international piping and pressure vessel codes with 100% material traceability, positive material identification (PMI), and certified EN 10204 3.1 inspection protocols.
| Engineering Parameter | Applicable Codes, Standards & Design Criteria |
|---|---|
| Design Standards | ASME B16.34, EN 12516, Manufacturer Standard |
| Face-to-Face Dimensions | ASME B16.10 / Manufacturer Standard for In-Line & Offset Ports |
| Flange Connections | ASME B16.5 RF / RTJ, ASME B16.47, EN 1092-1 |
| Pressure Testing Standard | API 598, ISO 5208, MSS SP-61 (Shell test 1.5x rating) |
| Body Materials | ASTM A216 WCB, A351 CF8M / CF3M, A352 LCC, Ductile Iron, Bronze |
| Basket Screen Metallurgy | Perforated AISI 316 Stainless Steel Sheet + 20 to 200 Mesh Lining |
| Cover Mechanism | Hinged Quick-Clamp, Swing-Davit Arm, Bolted Flanged with Eye Bolts |
| Vent & Drain Connections | Standard 1/2" NPT Top Vent and Bottom Cleanout Drain Port |
Complete Basket Strainer Models & Technical Capabilities
Engineered for severe process duty with quick-opening mechanisms, corrosion-resistant baskets, and continuous operation duplex designs.

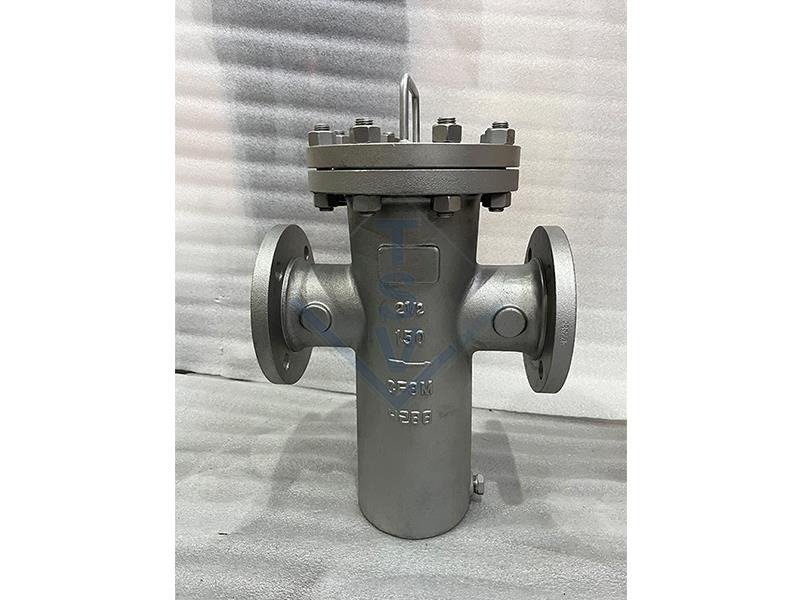

Quick-Opening Clamp Cover Simplex Basket Strainer
Features single-motion swing clamp closure for rapid basket removal without requiring wrenches, cutting maintenance downtime by up to 80%.
Heavy Flanged Bolted Cover High-Capacity Basket Strainer
Heavy-duty flanged cover basket strainer with integrated mechanical swing davit arm for safe, ergonomic cover lifting on large pipe sizes (> NPS 8").
Continuous Operation Duplex Basket Strainer System
Twin-basket filtration system with integrated diverter valve. Allows servicing and basket cleaning of the isolated chamber while flow continues uninterrupted through the active chamber.
High-Capacity Basket Strainer Flow Area & Debris Retention Mechanics
Engineered for large fluid volumes where extended run-time between cleanouts and pump protection are critical priorities.
Deep Volumetric Debris Reservoir
The vertical bucket geometry collects suspended solids at the bottom of the basket away from the main streamline, preventing premature choking and fluid re-entrainment.
Precision Machined Basket Sealing Seat
Precision internal landing shoulder with resilient O-ring or spring-loaded hold-down ring ensures 100% of fluid passes through the mesh with zero particulate bypass around the basket flange.
Ergonomic Davit Arm Assist
For large pipe sizes (≥ NPS 8"), our heavy integrated mechanical davit allows a single operator to safely lift and swivel heavy blind covers aside without crane or hoisting equipment.
Explore All 4 Pipeline Strainer Sub-Categories
1:1 aligned with TSV factory catalog. Severe-service filtration solutions for process piping, power generation, and pump protection.
Y-Type Pipeline Strainers
Compact ASME Class 150-2500 Y-strainers for liquid, gas, and steam lines with blow-off ports.
Y-Pattern View Y-Type Pipeline Strainers →Basket Strainers
Large debris holding capacity simplex and duplex switchable basket strainers for pump protection.
Current Series View Page Top ↑T-Type Strainers
Compact right-angle and straight-through tee type strainers with quick-release blind covers.
In-Line Tee View T-Type Strainers →Temporary & Special Strainers
Conical witch's hat, wafer basket, and custom start-up commissioning filters for new lines.
Start-Up Cone View Temporary & Special Strainers →Request Technical Quotation & Sizing Calculation
Submit your piping conditions, mesh/micron requirements, and project schedule. Our pipeline filtration engineers will return verified submittal drawings and commercial quotation within 24 hours.
