Severe Operating Challenges & Countermeasures
How TSV advanced metallurgy, certified low-emission sealing, and computational fluid design overcome the most unforgiving operating realities in Mining & Severe Slurry Pipelines.
Catastrophic High-Solid Slurry Particle Abrasion
Sharp silica and magnetite ore particles circulating at high velocity quickly erode standard valve body cavities and cut through resilient seals within weeks. TSV utilizes replaceable polyurethane/natural rubber sleeves and ceramic trims.
Valve Jamming & Solids Compaction in Body Cavities
Heavy mineral tailings settle into the lower body recesses of gate and ball valves, forming rock-hard cake deposits that prevent full valve closure. Our knife gate valves feature a self-cleaning perimeter scraper that shears clean through deposits.
High-Pressure Acid Leaching (HPAL) Corrosive Slurry
Autoclave processes combine 98% sulfuric acid at 250°C and 45 bar with abrasive ore particles. TSV engineers Titanium Gr. 5 and Hastelloy C-276 lined valves with solid ceramic (ZrO2 / SiC) balls and seats.
Catastrophic Pipeline Water Hammer During Pump Tripping
Dense tailings slurries with specific gravities >1.8 exert enormous hydraulic kinetic energy during unplanned pump shutdowns. TSV slurry check valves feature damped closure mechanisms to prevent pipe rupture.
Engineered Valve Selection Matrix
Recommended valve types, body metallurgy, and trim specifications across core operating units.
| Process Unit / Service | Recommended Valve Model | Size & Pressure Class | Body MOC | Trim & Seating |
|---|---|---|---|---|
| Tailings Disposal & Thickener Underflow | Heavy-Duty Bi-Directional Knife Gate Valve | NPS 3" - 36", Class 150-300 | Ductile Iron / WCB Body with Polyurethane Liner | 17-4PH Hardened Stainless Knife Blade |
| High-Pressure Tailings Hydrotransport | Severe Service Slurry Plug Valve | NPS 4" - 24", Class 600-900 | ASTM A216 WCC with Stellite 6 Overlay | Case-Hardened Tapered Plug with Flush Ports |

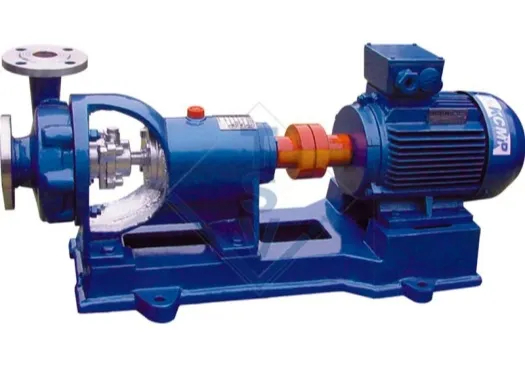

| Copper Flotation Tailings Pumping | Heavy-Duty Centrifugal Slurry Pump | Discharge 4" - 16", Heads to 80m | 28% High-Chrome White Iron (650 HB) | Dynamically Balanced Closed Impeller |
| HPAL Nickel-Cobalt Acid Autoclave | Solid Ceramic Lined Ball Valve | NPS 2" - 10", Class 300-600 | Titanium Grade 5 (Ti-6Al-4V) / Alloy 20 | Zirconia (ZrO2) Solid Ceramic Ball & Seats |
Core Valve Models for Mining & Severe Slurry Pipelines
Heavy-duty severe service valves tested and certified for continuous plant availability.
Global Project Track Record
Trusted by major international energy operators, state oil companies, and tier-1 EPC contractors.
Codelco El Teniente Copper Mine Expansion
240+ Heavy Duty Polyurethane-Lined Knife Gate Valves
Application: High-Density Copper Tailings Hydrotransport (65% solids)
Vale Carajás Iron Ore Beneficiation Plant
Class 300 Slurry Plug Valves & High-Chrome Pumps
Application: Iron Ore Slurry Concentration & Desliming
Freeport-McMoRan Grasberg Mineral Processing
Severe Service Metal-Seated & Ceramic Ball Valves
Application: Acid Leaching & Tailings Pipeline Interlocks
Mineral Concentrator & Tailings Pipeline Commissioning
Heavy-duty polyurethane and elastomer-lined slurry knife gate valves and severe-service isolation valves resisting high-velocity quartz and copper ore wear.
Consult with TSV Application Specialists for Mining & Severe Slurry Pipelines
Send your project process data sheet, fluid media composition, operating pressures, and piping class requirements. Our senior valve design team provides certified MTCs, finite element analysis (FEA) reports, and commercial bids within 24 hours.
