Self-Operated Regulating Valves
Autonomous self-operated regulating valves engineered to maintain constant upstream or downstream line pressure without requiring external power supplies, compressed instrument air, or electronic controllers. The process fluid directly acts upon an internal sensing diaphragm and calibrated spring mechanism to achieve instantaneous, reliable pressure regulation.
Design Codes & Valve Construction Standards
Fully compliant with IEC 60534, ISA 75, and ASME standards for industrial process automation and severe service throttling.
| Engineering Parameter | Standard Compliance & Engineering Scope |
|---|---|
| Design & Control Valve Code | IEC 60534 Series, ISA 75.01, ASME B16.34, GB/T 4213 |
| Face-to-Face Dimensions | IEC 60534-3-1, IEC 60534-3-2, ASME B16.10, EN 558 |
| Flanged & Butt-Weld Ends | ASME B16.5, ASME B16.47, ASME B16.25 (Butt Weld) |
| Pressure Ratings | ASME Class 150, 300, 600, 900, 1500, 2500 (PN 16 to 420) |
| Seat Leakage Classes | ANSI/FCI 70-2 / IEC 60534-4 Class IV (Standard), Class V, Class VI (Bubble-Tight) |
| Flow Characteristic Profiles | Equal Percentage (EQ%), Linear (LIN), Quick Opening (QO) |
| Fugitive Emissions Sealing | ISO 15848-1 Class AH/BH, TA-Luft Certified Stem Packing |
| Body Castings & Forgings | ASTM A216 WCB, ASTM A217 WC6/WC9/C12A, ASTM A351 CF8M/CF3M, Hastelloy C276 |
Self-Operated Regulating Valves Model Selection
Explore engineered configurations built for continuous modulating loops, severe pressure drops, and zero-leakage isolation.

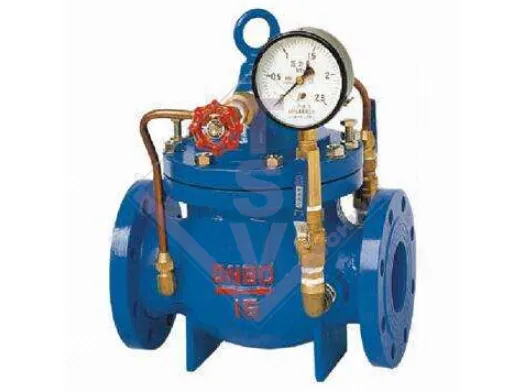

Direct-Acting Downstream Pressure Reducing Valve
Senses downstream pipeline pressure and automatically throttles to maintain a constant reduced pressure setpoint regardless of upstream supply fluctuations.
Upstream Backpressure Relief Self-Operated Regulator
Installs in bypass or exhaust headers to maintain stable upstream pressure, automatically opening whenever system pressure exceeds the preset threshold.
Micro-Pressure Tank Nitrogen Blanketing Regulator
Ultra-sensitive large-area sensing diaphragm engineered to control millibar-level nitrogen blanket pressures in storage tanks, preventing explosive vapor egress.

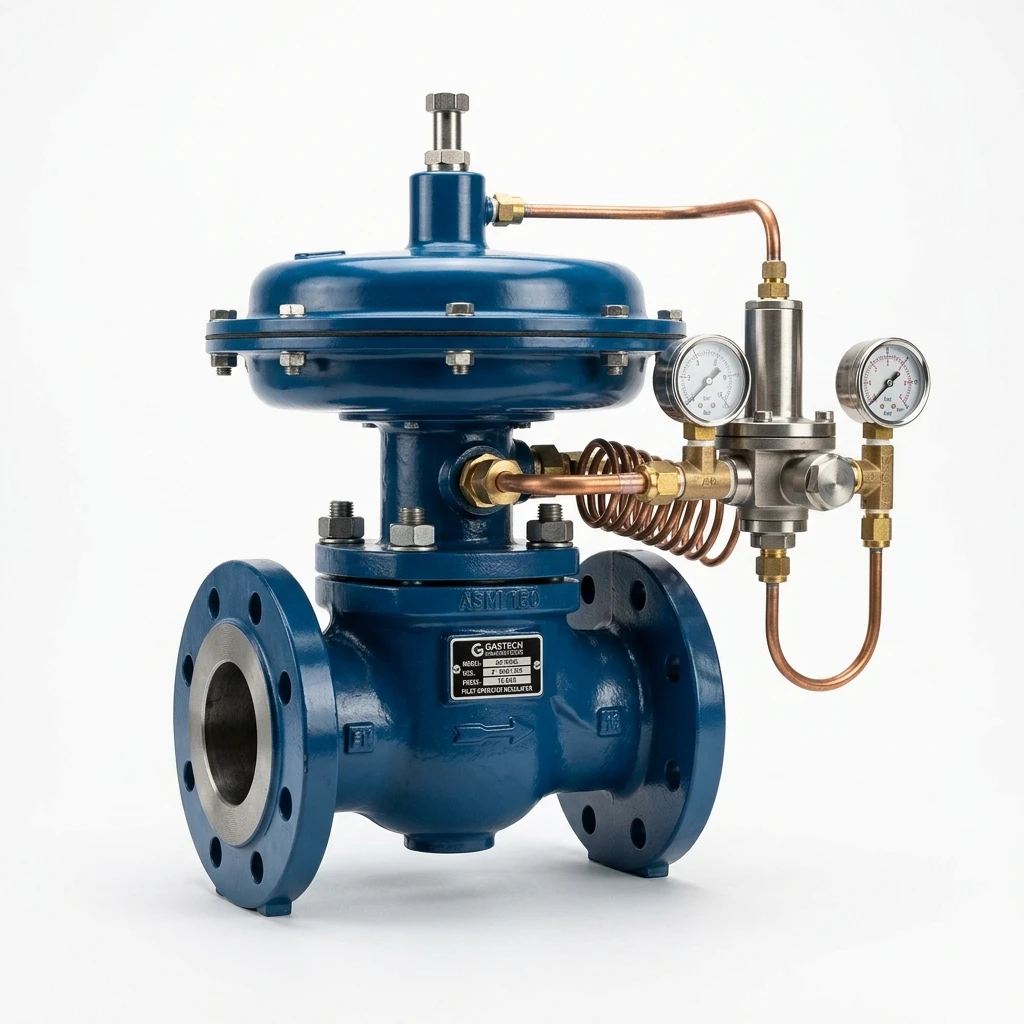

Pilot-Operated High-Sensitivity Self-Acting Regulator
Integrates an external pilot valve to amplify fluid pressure differentials, providing exceptional regulation accuracy across wide volumetric flow swings.
Energy-Harvesting Self-Acting Operating Architecture
How pipeline fluid enthalpy autonomously actuates precision pressure regulation with zero external energy footprint.
Completely Autonomous Operation
Zero dependency on plant instrument air compressors, electrical cabling, or programmable logic controllers (PLCs), ensuring 100% fail-safe uptime.
Large Surface Area Sensing Actuator
Ultra-sensitive rubber or metallic rolling diaphragms convert minor line pressure shifts into robust mechanical valve stem displacement.
Pre-Calibrated Heavy Helical Springs
Spring rates are precisely matched to requested control setpoints; external adjusting screws allow rapid on-site pressure retuning under live flow.
Integrated Balanced Plug Trim
Pressure-balanced piston or bellows trims cancel out inlet pressure perturbations, ensuring stable outlet control regardless of supply fluctuations.
Explore All 4 Regulate & Control Valve Sub-Categories
1:1 aligned with TSV factory engineering catalog. Continuous modulating pneumatic, severe cage-guided, autonomous self-acting, and all-electric actuators.
Pneumatic Diaphragm Control Valve
Multi-spring pneumatic actuator with smart 4-20mA HART positioner for fast, linear modulating response.
Pneumatic HART View Pneumatic Diaphragm Control Valve →Cage Guided Control Valve
Drilled multi-hole labyrinth cage distributing high pressure differential to prevent cavitation erosion.
Anti-Cavitation View Cage Guided Control Valve →Self-Operated Regulating Valve
Direct energy-harvesting pressure reducing regulator maintaining downstream stability without power supply.
Current Series View Page Top ↑Electric Modulating Control Valve
Electronic intelligent modulating multi-turn actuator accepting direct 4-20mA or Profibus control loops.
Electric Modulating View Electric Modulating Control Valve →Request Control Valve Pricing & Cv Sizing Submittal
Factory direct quotation within 24 hours. Send operating pressures (P1, P2), medium flow rate (Q), and temperature for computer-aided IEC 60534 sizing.
