Cage Guided Control Valves
Designed specifically for severe high pressure drops, boiler feedwater letdown, and superheated steam bypass lines. The pressure-balanced plug design reduces actuator thrust requirements by over 75%, while multi-stage drilled-hole cages and labyrinth disc stacks eliminate destructive cavitation, flashing erosion, and aerodynamic noise.
Design Codes & Valve Construction Standards
Fully compliant with IEC 60534, ISA 75, and ASME standards for industrial process automation and severe service throttling.
| Engineering Parameter | Standard Compliance & Engineering Scope |
|---|---|
| Design & Control Valve Code | IEC 60534 Series, ISA 75.01, ASME B16.34, GB/T 4213 |
| Face-to-Face Dimensions | IEC 60534-3-1, IEC 60534-3-2, ASME B16.10, EN 558 |
| Flanged & Butt-Weld Ends | ASME B16.5, ASME B16.47, ASME B16.25 (Butt Weld) |
| Pressure Ratings | ASME Class 150, 300, 600, 900, 1500, 2500 (PN 16 to 420) |
| Seat Leakage Classes | ANSI/FCI 70-2 / IEC 60534-4 Class IV (Standard), Class V, Class VI (Bubble-Tight) |
| Flow Characteristic Profiles | Equal Percentage (EQ%), Linear (LIN), Quick Opening (QO) |
| Fugitive Emissions Sealing | ISO 15848-1 Class AH/BH, TA-Luft Certified Stem Packing |
| Body Castings & Forgings | ASTM A216 WCB, ASTM A217 WC6/WC9/C12A, ASTM A351 CF8M/CF3M, Hastelloy C276 |
Cage Guided Control Valves Model Selection
Explore engineered configurations built for continuous modulating loops, severe pressure drops, and zero-leakage isolation.

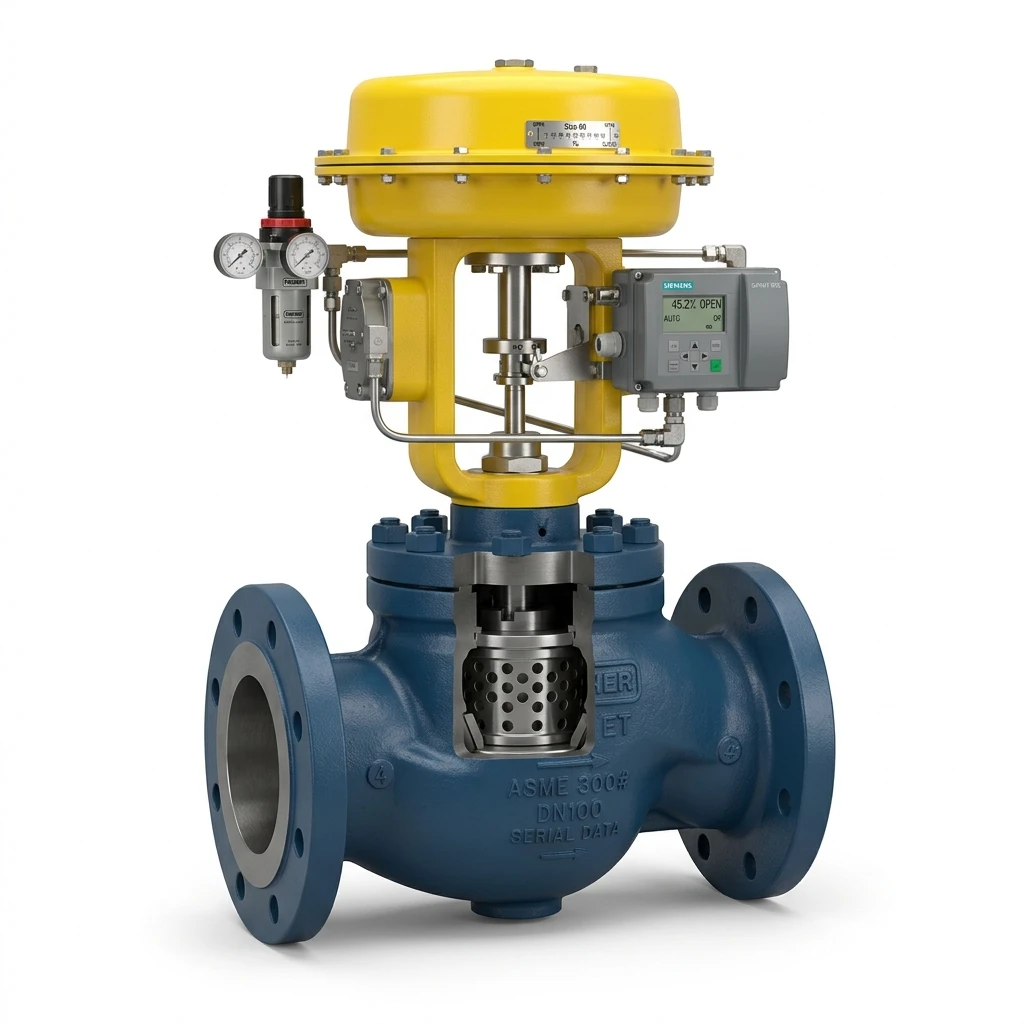

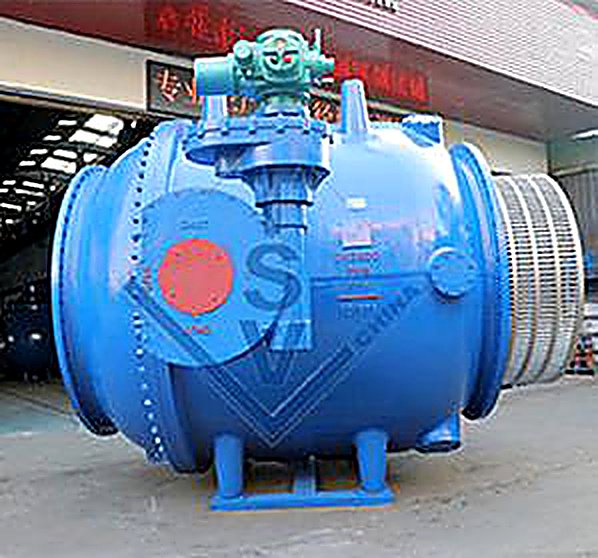

Pressure-Balanced High-Capacity Cage Guided Control Valve
Internal balancing ports equalize line pressure above and below the plug, dramatically lowering actuator thrust and preventing stem vibration during continuous regulation.

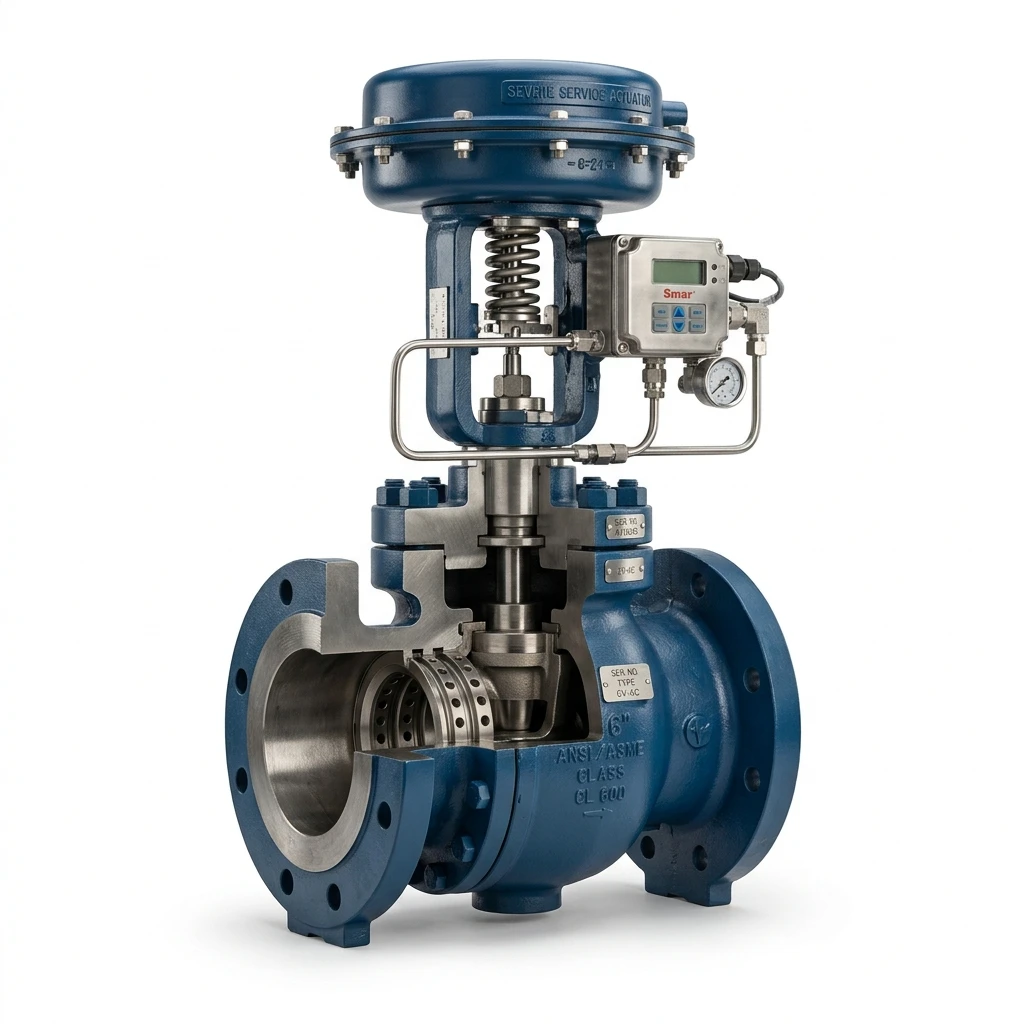

Multi-Stage Drilled Cage Anti-Cavitation Control Valve
Concentric radial holes staged along the cage wall distribute pressure drops into discrete fractions, ensuring vena-contracta pressure stays above vapor pressure.

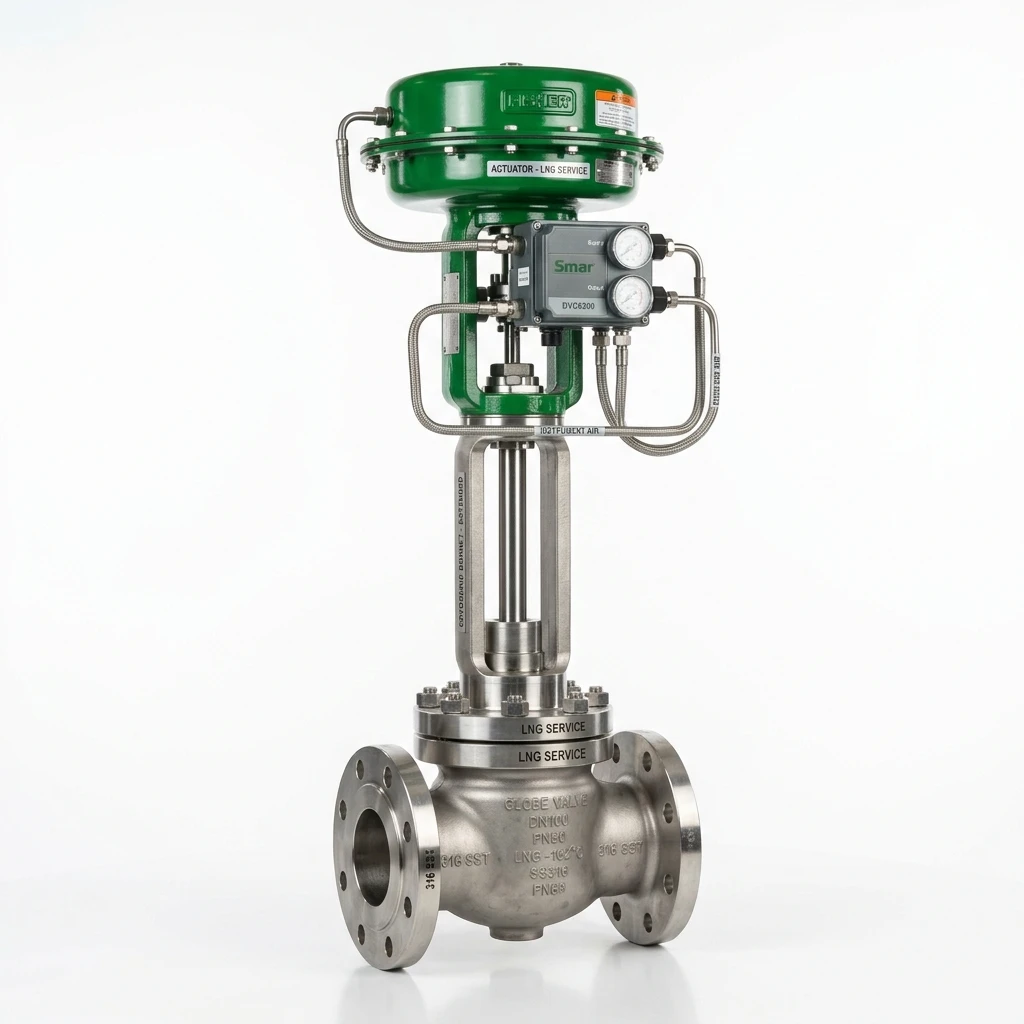

Labyrinth Disc Stack Severe-Service Low-Noise Control Valve
Multi-turn etched tortuous channels force gas or steam through friction pressure dissipation, limiting acoustic exit velocity below Mach 0.3.

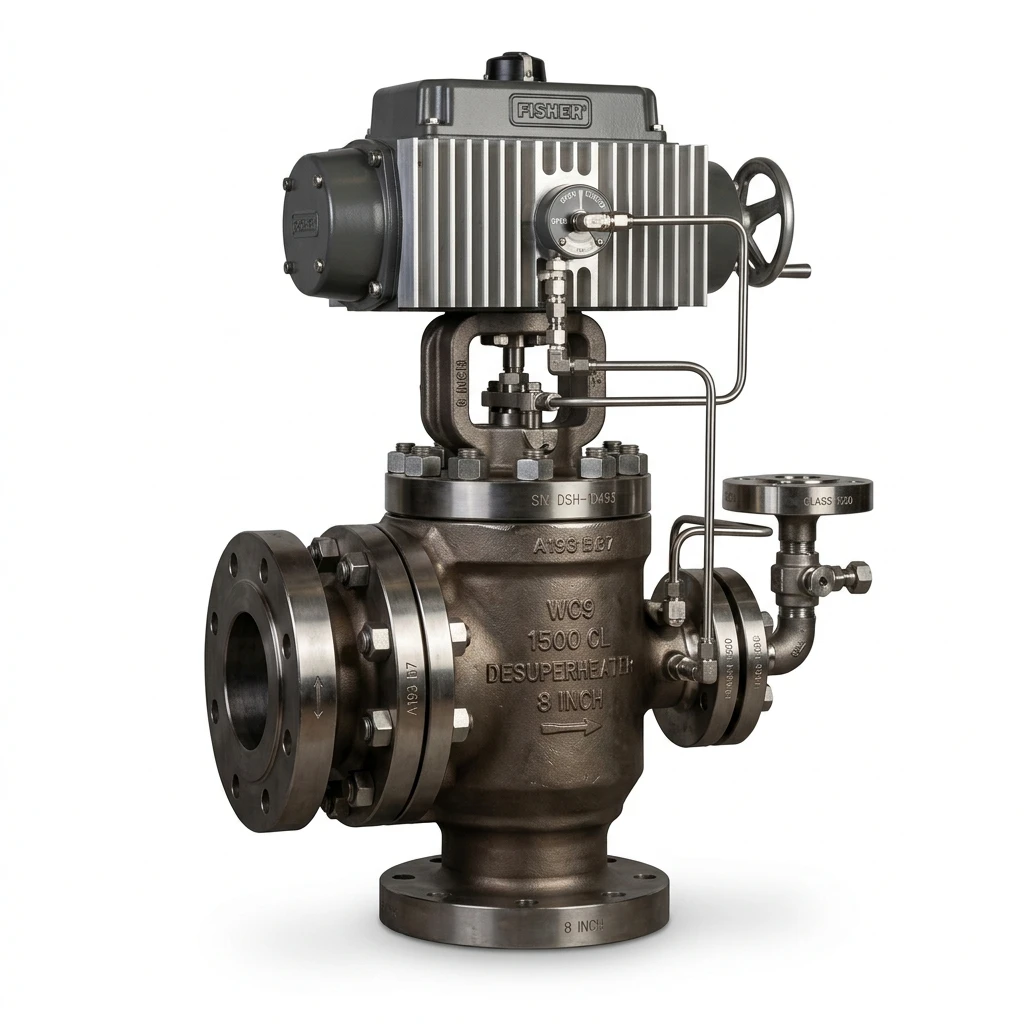

High Temperature Superheated Steam Desuperheater Valve
Integrated variable-area atomizing spray nozzles deliver precision cooling water injection for turbine bypass and superheated steam temperature control.
Severe-Service Trim Engineering & Anti-Cavitation Mechanics
How engineered cage trims manage high velocity fluid kinetics, acoustic energy, and high delta-P letdown.
Dynamic Balancing Trim Architecture
Balancing holes drilled through the plug equalize fluid pressures across top and bottom faces, reducing required actuator thrust by 75-80%.
Concentric Drilled Cage Velocity Control
Fluid jets impinge upon each other in the cage center rather than against the valve body wall, absorbing kinetic dissipation safely within the fluid core.
Tortuous Path Friction Pressure Drop
Labyrinth discs force high-pressure gas through dozens of right-angle turns, converting potential energy into harmless wall friction instead of sonic noise.
Hardened Trim Materials for Erosion Resistance
All cage wetted surfaces are heat treated or hardfaced with Stellite 6, Colmonoy, or Tungsten Carbide to resist wire-drawing and particulate scoring.
Explore All 4 Regulate & Control Valve Sub-Categories
1:1 aligned with TSV factory engineering catalog. Continuous modulating pneumatic, severe cage-guided, autonomous self-acting, and all-electric actuators.
Pneumatic Diaphragm Control Valve
Multi-spring pneumatic actuator with smart 4-20mA HART positioner for fast, linear modulating response.
Pneumatic HART View Pneumatic Diaphragm Control Valve →Cage Guided Control Valve
Drilled multi-hole labyrinth cage distributing high pressure differential to prevent cavitation erosion.
Current Series View Page Top ↑Self-Operated Regulating Valve
Direct energy-harvesting pressure reducing regulator maintaining downstream stability without power supply.
Self-Operated View Self-Operated Regulating Valve →Electric Modulating Control Valve
Electronic intelligent modulating multi-turn actuator accepting direct 4-20mA or Profibus control loops.
Electric Modulating View Electric Modulating Control Valve →Request Control Valve Pricing & Cv Sizing Submittal
Factory direct quotation within 24 hours. Send operating pressures (P1, P2), medium flow rate (Q), and temperature for computer-aided IEC 60534 sizing.
