Electric Modulating Control Valves
State-of-the-art electric modulating control valves engineered for industrial plants, remote pipelines, and municipal utilities where compressed air is unavailable or impractical. Equipped with intelligent microprocessor-controlled linear servo actuators, digital LCD position readouts, and direct 4-20mA or industrial fieldbus telemetry.
Design Codes & Valve Construction Standards
Fully compliant with IEC 60534, ISA 75, and ASME standards for industrial process automation and severe service throttling.
| Engineering Parameter | Standard Compliance & Engineering Scope |
|---|---|
| Design & Control Valve Code | IEC 60534 Series, ISA 75.01, ASME B16.34, GB/T 4213 |
| Face-to-Face Dimensions | IEC 60534-3-1, IEC 60534-3-2, ASME B16.10, EN 558 |
| Flanged & Butt-Weld Ends | ASME B16.5, ASME B16.47, ASME B16.25 (Butt Weld) |
| Pressure Ratings | ASME Class 150, 300, 600, 900, 1500, 2500 (PN 16 to 420) |
| Seat Leakage Classes | ANSI/FCI 70-2 / IEC 60534-4 Class IV (Standard), Class V, Class VI (Bubble-Tight) |
| Flow Characteristic Profiles | Equal Percentage (EQ%), Linear (LIN), Quick Opening (QO) |
| Fugitive Emissions Sealing | ISO 15848-1 Class AH/BH, TA-Luft Certified Stem Packing |
| Body Castings & Forgings | ASTM A216 WCB, ASTM A217 WC6/WC9/C12A, ASTM A351 CF8M/CF3M, Hastelloy C276 |
Electric Modulating Control Valves Model Selection
Explore engineered configurations built for continuous modulating loops, severe pressure drops, and zero-leakage isolation.

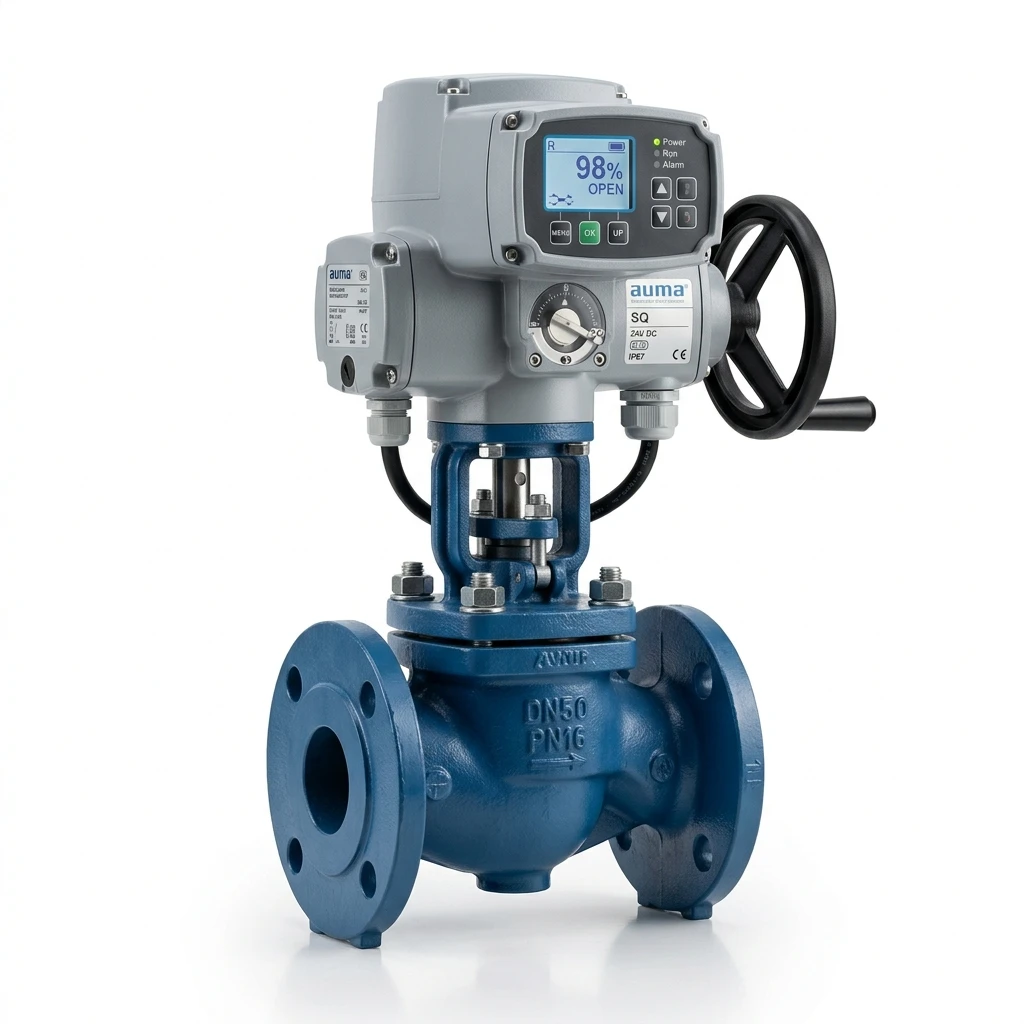

Intelligent Linear Modulating Electric Globe Control Valve
Brushless DC or synchronous motor with non-intrusive infrared setup, continuous electronic torque monitoring, and automatic zero/span self-calibration.

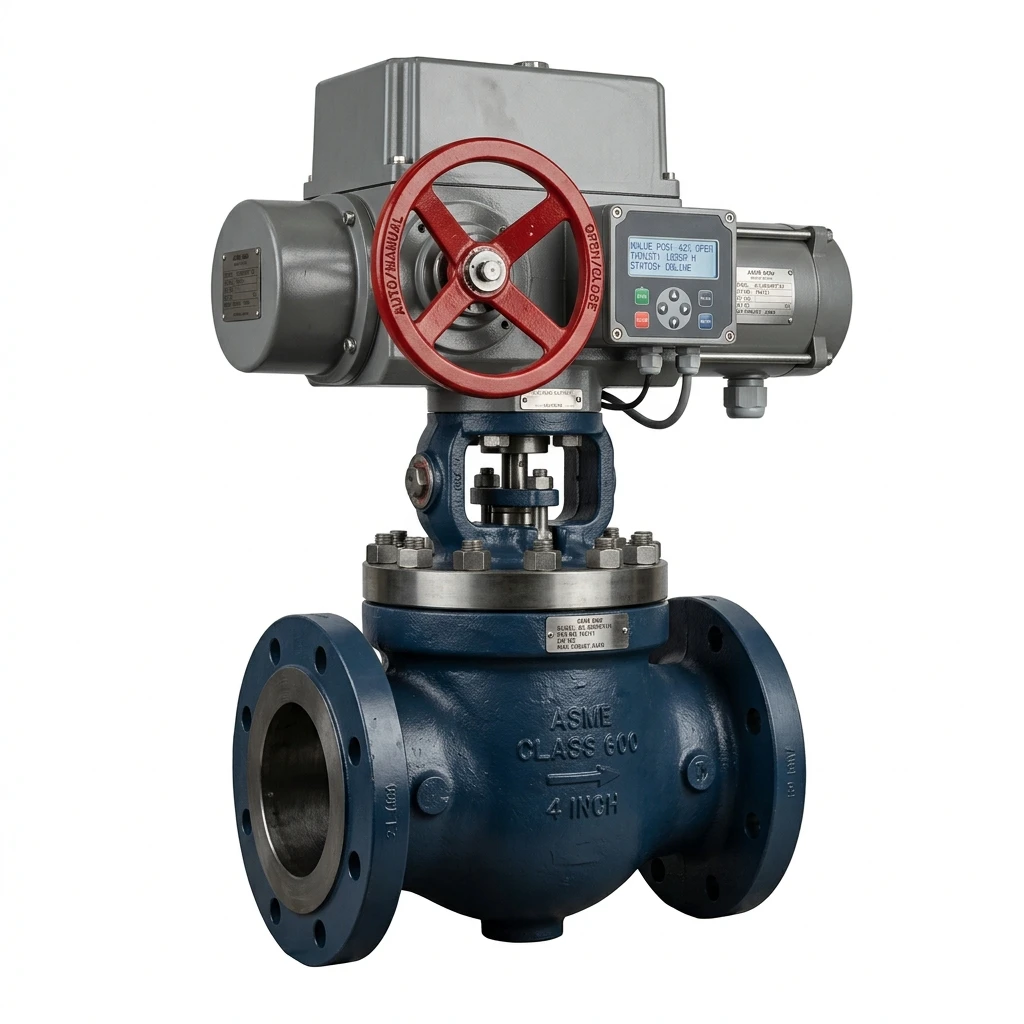

Heavy-Duty High-Thrust Electric Cage Guided Valve
Heavy industrial multi-turn electric actuator delivering up to 45,000 N linear thrust to overcome extreme differential pressures in large-diameter transmission lines.
Explosion-Proof Ex d IIC Modbus Electric Control Valve
Certified flameproof enclosure for hazardous refinery zones (Zone 1 / Zone 2), supporting two-wire RS485 Modbus RTU or Foundation Fieldbus networks.

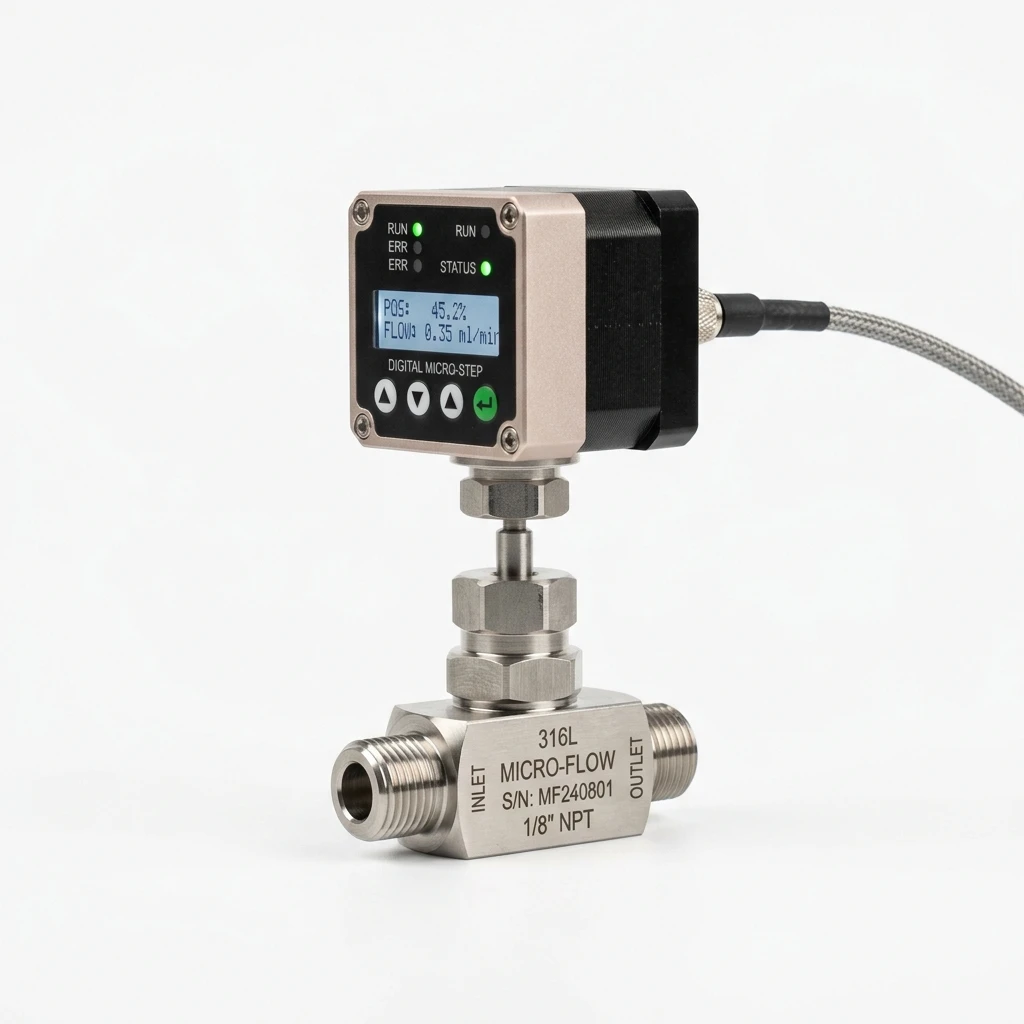

Micro-Flow Precision Electric Chemical Metering Valve
High-resolution micro-stepper motor actuator delivering micron-level needle stem positioning for chemical inhibitor injection and lab pilot skids.
Intelligent Electric Modulating Actuation Mechanics
Why all-electric digital throttling streamlines automation skids without compressed instrument air infrastructure.
Zero Compressed Air Infrastructure Dependency
Eliminates air compressors, air filtration dryers, pneumatic supply tubing, and regulator maintenance across distributed pipeline manifolds.
Digital Microprocessor Accuracy (<0.2%)
High-frequency encoder provides contactless position feedback, eliminating mechanical potentiometer wear and delivering ultra-fine positioning.
Fail-Safe Capacitor / Battery Return
Optional internal supercapacitor or rechargeable lithium battery pack automatically drives the valve to full-open or full-closed upon AC power failure.
Seamless Industrial IoT & Fieldbus Integration
Direct digital communication transmits real-time valve position, motor temperature, torque curves, and cycle counts straight to SCADA hosts.
Explore All 4 Regulate & Control Valve Sub-Categories
1:1 aligned with TSV factory engineering catalog. Continuous modulating pneumatic, severe cage-guided, autonomous self-acting, and all-electric actuators.
Pneumatic Diaphragm Control Valve
Multi-spring pneumatic actuator with smart 4-20mA HART positioner for fast, linear modulating response.
Pneumatic HART View Pneumatic Diaphragm Control Valve →Cage Guided Control Valve
Drilled multi-hole labyrinth cage distributing high pressure differential to prevent cavitation erosion.
Anti-Cavitation View Cage Guided Control Valve →Self-Operated Regulating Valve
Direct energy-harvesting pressure reducing regulator maintaining downstream stability without power supply.
Self-Operated View Self-Operated Regulating Valve →Electric Modulating Control Valve
Electronic intelligent modulating multi-turn actuator accepting direct 4-20mA or Profibus control loops.
Current Series View Page Top ↑Request Control Valve Pricing & Cv Sizing Submittal
Factory direct quotation within 24 hours. Send operating pressures (P1, P2), medium flow rate (Q), and temperature for computer-aided IEC 60534 sizing.
