Industrial Knife Gate Valve
Robust unidirectional and bidirectional knife gate valves engineered for abrasive slurries, mining tailings, pulp and paper stock, wastewater treatment, and dry bulk conveyance. Features a precision beveled knife blade to cleanly shear through fibrous media and viscous solids.
Design Criteria & Manufacturing Specifications
Manufactured strictly to international engineering codes with 100% factory pressure testing, full EN 10204 3.1 / 3.2 material traceability, and accredited third-party witness support.
| Engineering Parameter | Applicable Codes, Standards & Design Criteria |
|---|---|
| Design Standard | MSS SP-81, ASME B16.34 |
| Body Materials | Ductile Iron GGG40, Cast Steel WCB, Stainless Steel CF8/CF8M |
| Gate Blade Edge | Precision chamfered cutting knife edge with micro-polished finish |
| Resilient Seat Options | EPDM, NBR, Viton, PTFE, or Integral Metal-to-Metal |
| Actuation Packages | Handwheel, Bevel Gearbox, Double-Acting Pneumatic Cylinder, Electric |
Knife Gate Valve Standard & Engineered Models
TSV manufactures an engineered lineup of Knife Gate Valve configurations for global oil & gas transmission pipelines, refinery manifolds, power plants, and severe industrial processes. Each unit undergoes 100% hydrostatic and pneumatic factory acceptance testing before dispatch.

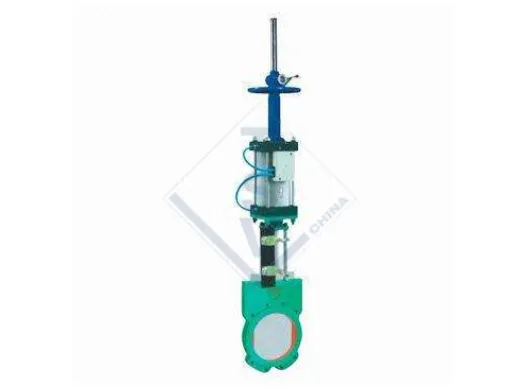

Heavy Slurry Hydraulic Actuated Knife Gate Valve
Heavy-duty hydraulic cylinder actuation engineered to shear through consolidated tailings and dense ore mineral slurries without stalling.
Sprocket Chain-Operated Slurry Knife Gate Valve
Designed for overhead pipe bridges and elevated conveyor chutes, operated reliably from ground level with heavy industrial link chain.
Pneumatic Stainless Steel Automated Knife Gate Valve
Equipped with dual magnetic limit switch box, 5/2-way Namur solenoid, and air filter regulator for high-cycle automated bulk powder batching.

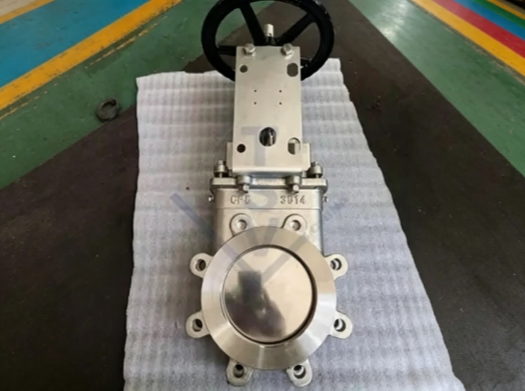

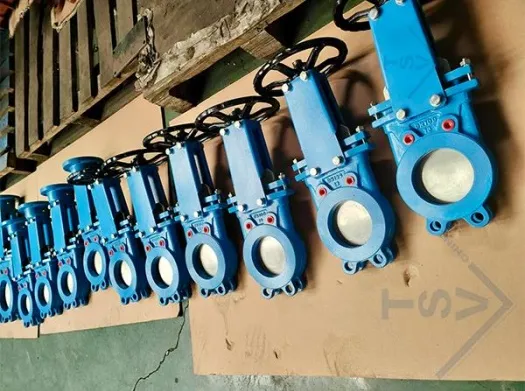

Wafer & Lug Bi-Directional Knife Gate Valve
Zero downstream leakage in both flow directions with perimeter reinforced elastomer seat ring for pulp stock, wastewater, and dry bulk.
Field-Replaceable Rubber Seat Slurry Knife Gate Valve
Features twin heavy-duty molded rubber sleeves that push together under line pressure, completely protecting metal body from slurry wear.

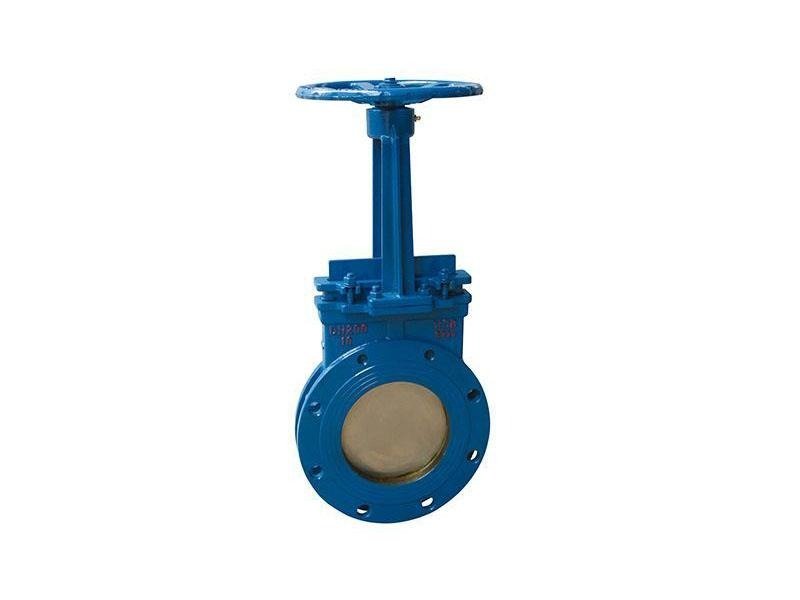

Manual Handwheel Industrial Knife Gate Valve
Classic rising stem design with brass yoke bushing and precision acme stem threads for smooth manual throttling in wastewater treatment.
Beveled Stainless Knife Shearing Action & Heavy Slurry Deflection
Self-cleaning gate geometry shears through heavy pulp, mineral slurry solids, and fiber clumps without seat jamming.
100% Hydrostatic Acceptance
Every valve is pressure-tested per API 598 / API 6D Rate A with zero allowable bubble leakage prior to factory crating.
EN 10204 3.1 Certified
Certified Mill Test Reports (MTR) with optical emission spectrometer chemical composition and mechanical impact values.
Global OXY Approved Supplier
Audited and approved on the global master vendor list (#24) of Occidental Petroleum for severe upstream duties.
Explore All 4 Gate Valve Sub-Categories
1:1 aligned with TSV factory catalog. Navigate to specialized casting, forged steel, slurry knife gate, or power station pressure-seal configurations.
Casting Gate Valve
API 600 heavy-wall bolted bonnet cast steel (WCB, LCC, WC6) flexible wedge gate for refinery manifolds.
API 600 Heavy Wall View Casting Gate Valve →Forged Steel Gate Valve
API 602 compact forged alloy (A105, F316, F11) for severe high-pressure auxiliary vents, drains, and skids.
Class 800 - 2500 View Forged Steel Gate Valve →Knife Gate Valve
MSS SP-81 beveled stainless blade shearing through abrasive slurry, mineral tailings, and pulp lines.
Current Series View Page Top ↑Self Sealing Gate Valve
Pressure-seal flexible graphite ring tightening under supercritical steam line pressures for power plants.
Superheated Steam View Self Sealing Gate Valve →Request Engineering Submittal & Commercial Quotation
Connect directly with our Yongjia engineering technical sales team. Receive technical engineering datasheets, CAD dimensional GA drawings, and quotation within 24 hours.
