API 599 Lubricated Taper Plug Valves
Precision-engineered lubricated taper plug valves designed for high-pressure dirty gas gathering, crude oil manifolds, and slurry transport. Pressure-injected synthetic sealant creates an impenetrable dynamic boundary over metal-to-metal seating surfaces, extending service life in demanding abrasive environments.
Design Codes & Valve Construction Standards
Fully aligned with international engineering standards for refinery units, oil & gas transmission, and severe chemical isolation.
| Engineering Parameter | Standard Compliance & Material Execution |
|---|---|
| Design & Manufacture Standards | API 599, API 6D, ASME B16.34, BS 5353 |
| Face-to-Face & End-to-End | ASME B16.10, API 6D, EN 558 Series |
| Flanged & Butt-Weld Ends | ASME B16.5 (<=24"), ASME B16.47 Series A/B, ASME B16.25 (Butt Weld) |
| Pressure & Temperature Ratings | ASME B16.34 Class 150, 300, 600, 900, 1500, 2500 |
| Pressure Testing & Inspection | API 598, API 6D Rate A, ISO 5208, EN 12266-1 |
| Fire Safety Certification | API 607, ISO 10497 (Tested and Verified Construction) |
| Sour Service & Cracking Resistance | NACE MR0175 / ISO 15156, NACE MR0103 / ISO 17945 |
| Body Castings & Forgings | ASTM A216 WCB, A350 LF2, A351 CF8M, CF3M, Hastelloy C276, Monel 400 |
API 599 Lubricated Taper Plug Valves Model Selection
Explore engineered configurations built for severe abrasion, extreme pressure drop, and critical chemical isolation.

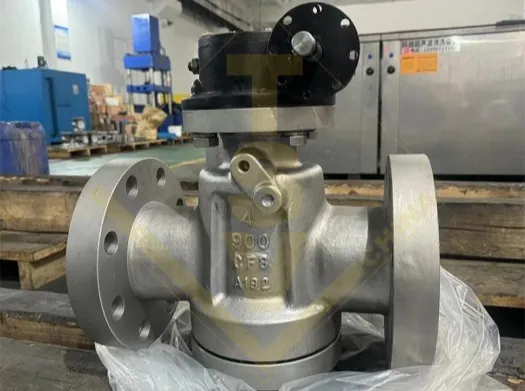

Regular Pattern Lubricated Taper Plug Valve
Full-contact tapered metal plug with multi-point sealant distribution grooves for reliable on-off isolation in upstream production facilities.

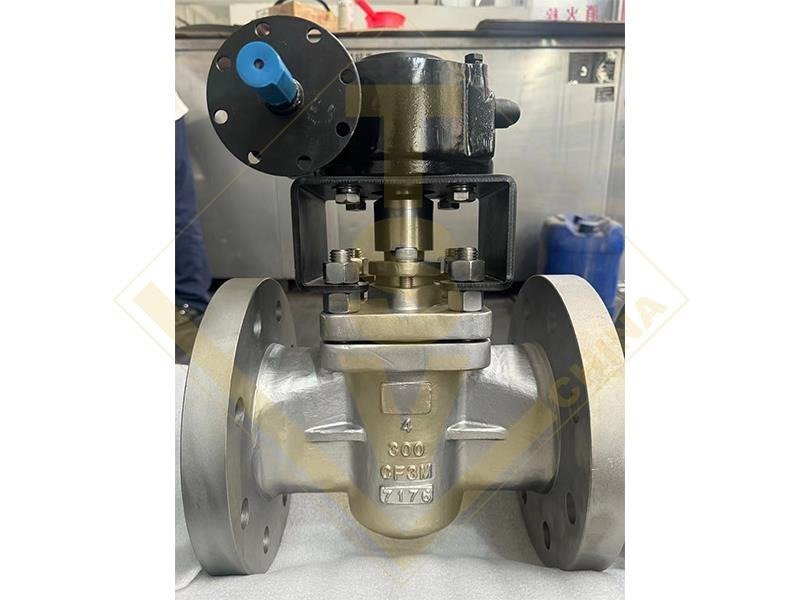

Short Pattern Compact Lubricated Plug Valve
Interchangeable with ASME B16.10 gate valve face-to-face dimensions, saving skid footprint while offering fast quarter-turn actuation.

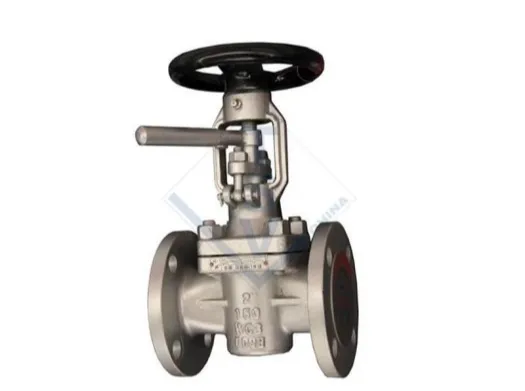

Venturi Pattern High Pressure Lubricated Plug Valve
Optimized hydraulic transition profile engineered for large-diameter transmission lines to minimize operating torque while maintaining smooth flow recovery.

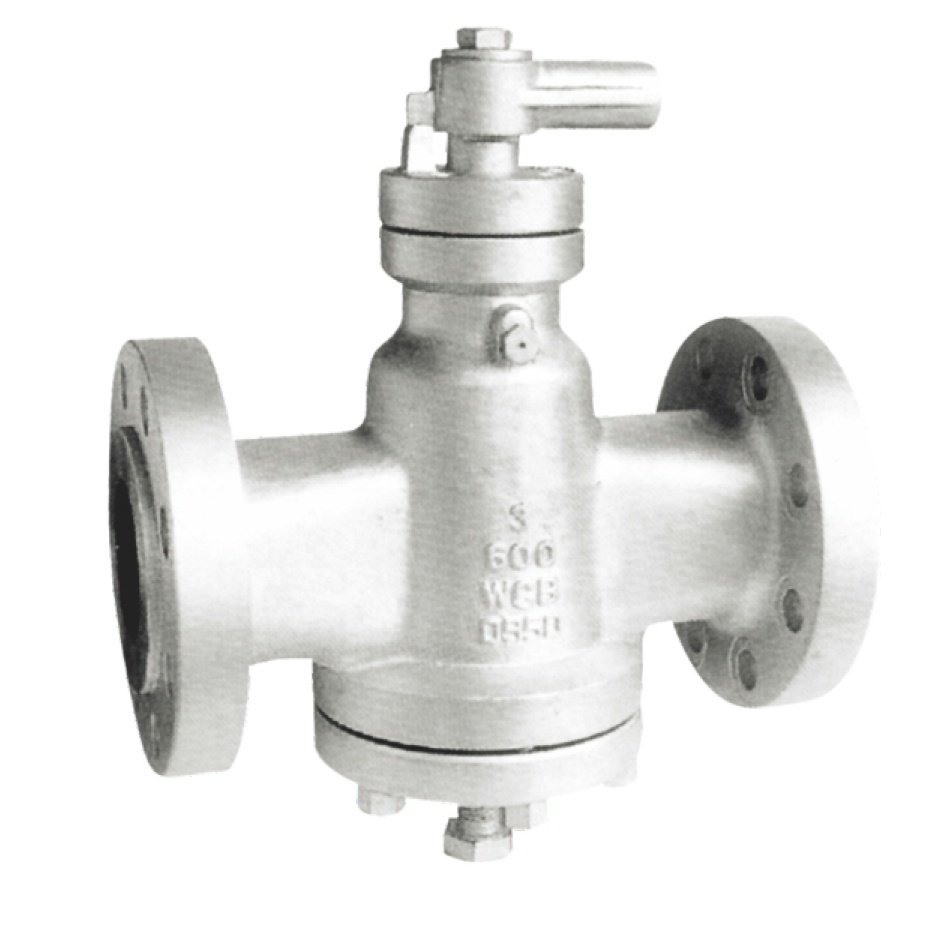

Multi-Port 3-Way Process Flow Diverter Plug Valve
L-port and T-port configurations allowing fluid diversion between processing lines with zero dead legs, eliminating multiple gate valve manifolds.
Lubricated Plug Valve Technical Engineering Principles
Engineered for severe erosive media and high-differential gas manifolds with dynamic renewable sealing.
Renewable Hydraulic Sealant System
External high-pressure injection fitting forces synthetic sealant through internal radial channels to replenish seating surfaces during operation.
Metal-to-Metal Precision Lapping
Tapered plug and body seat are individually paired and precision-lapped to achieve micron-level geometric conformity and API 598 zero leakage.
In-Line Emergency Sealing
In case of pipeline debris damage, instant grease injection restores positive shut-off without interrupting line flow or requiring unbolting.
Fire-Safe Certified Design
All-metal construction inherently satisfies API 607 and ISO 10497 standards, maintaining pressure containment during plant fire emergencies.
Explore All 4 Plug Valve Sub-Categories
1:1 aligned with TSV factory catalog. Severe-service quarter-turn plug valves with positive dynamic sealing.
Lubricated Taper Plug Valve
API 599 dynamic sealant injection grooves for high-pressure dirty natural gas and slurry manifolds.
Current Series View Page Top ↑PTFE Sleeved Non-Lubricated Plug Valve
Full 360° virgin PTFE sleeve offering zero maintenance and zero lubrication in corrosive chemical media.
PTFE Sleeved View PTFE Sleeved Non-Lubricated Plug Valve →Inverted Pressure Balanced Plug Valve
Dynamic pressure balance channels preventing plug taper lock in severe cyclic high-differential service.
Pressure Balanced View Inverted Pressure Balanced Plug Valve →Twin Seal DBB Double Plug Valve
Mechanical expanding slips for zero friction wear and verified double block and bleed in custody transfer.
API 6D Twin Seal View Twin Seal DBB Double Plug Valve →Request Plug Valve Pricing & Technical Submittal
Factory direct quotation within 24 hours. Send pipeline conditions, medium data, or project MTO for detailed engineering submittal.
