ASME B16.5 Forged Flanges & High-Integrity Piping Spools
Precision-forged steel pipe flanges manufactured to ASME B16.5, ASME B16.47, and EN 1092-1 standards for high-pressure oil & gas pipelines, refinery tie-ins, and petrochemical plant manifolds.
Design Criteria & Manufacturing Specifications
Manufactured strictly to international piping and pressure vessel codes with 100% material traceability, positive material identification (PMI), and certified EN 10204 3.1 inspection protocols.
| Engineering Parameter | Applicable Codes, Standards & Design Criteria |
|---|---|
| Manufacturing Standards | ASME B16.5 (Up to 24"), ASME B16.47 Series A/B (26" to 60"), EN 1092-1 |
| Flange Types Available | Welding Neck (WN), Slip-On (SO), Blind (BL), Socket Weld (SW), Threaded (TH) |
| Facing Finish Standard | Serrated Concentric or Spiral Finish (Ra 3.2 to 6.3 µm / 125 to 250 µin) |
| Pressure Class Rating | ASME Class 150, 300, 400, 600, 900, 1500, 2500 (PN 20 to PN 420) |
| Size Spectrum | NPS 1/2" to 24" (B16.5) and NPS 26" to 60" (B16.47 Series A / MSS SP-44) |
| Carbon & Low-Temp Alloys | ASTM A105, ASTM A350 LF2 Class 1/2, ASTM A694 F52 / F60 / F65 / F70 |
| Stainless & Exotic Alloys | ASTM A182 F304/304L, F316/316L, F321, F51 (2205), F53 (2507), Inconel 625 |
| Inspection & Acceptance | 100% Ultrasonic Testing (UT), Magnetic Particle / Liquid Penetrant, EN 10204 3.1 MTR |
ASME B16.5 Forged Flanges Standard & Engineered Models
Browse TSV's complete portfolio of weld neck, blind, and slip-on high-integrity forged piping flanges engineered for severe pressure and temperature manifolds.

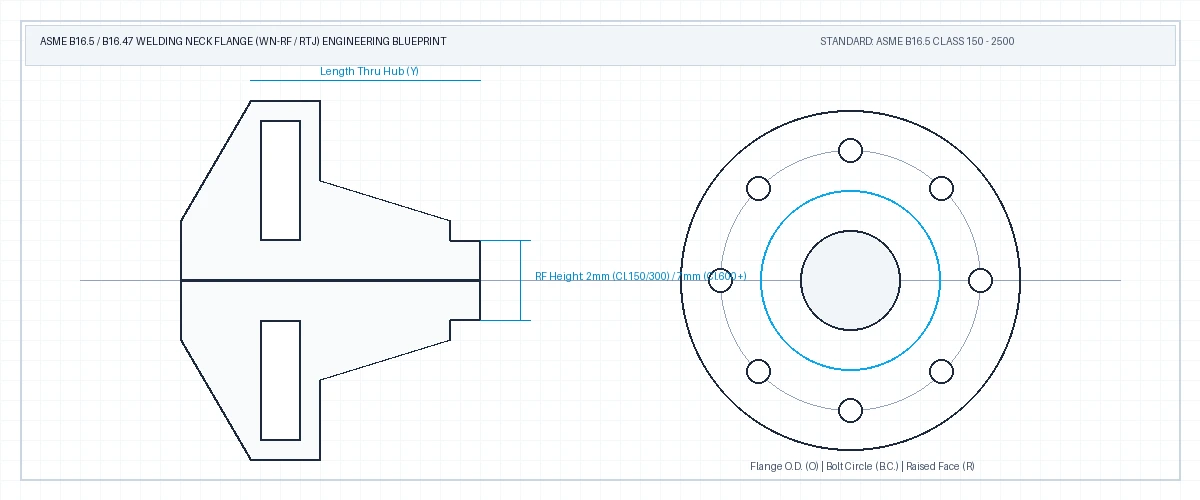

ASME B16.5 Weld Neck Flange (WNRF / WN-RTJ) Heavy Forged Series
Full penetration tapered hub weld neck flange transferring stress directly into pipe wall, delivering superior fatigue endurance under cyclic thermal stress.

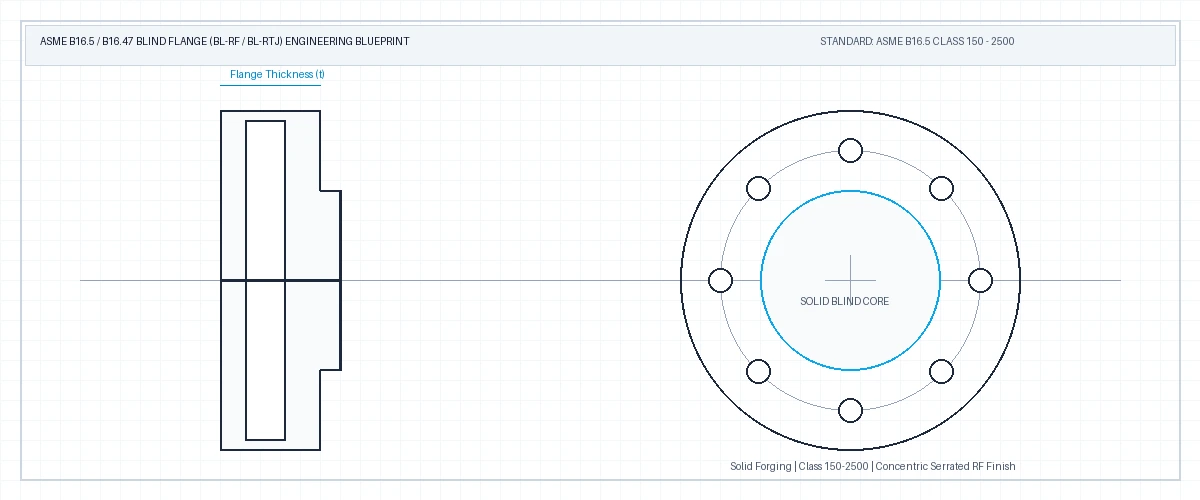

High-Pressure Heavy Forged Blind Flange (BLRF / BL-RTJ)
Solid forged disc flange designed to terminate pipeline sections and vessel nozzles under maximum hydrostatic pressure with zero deflection.

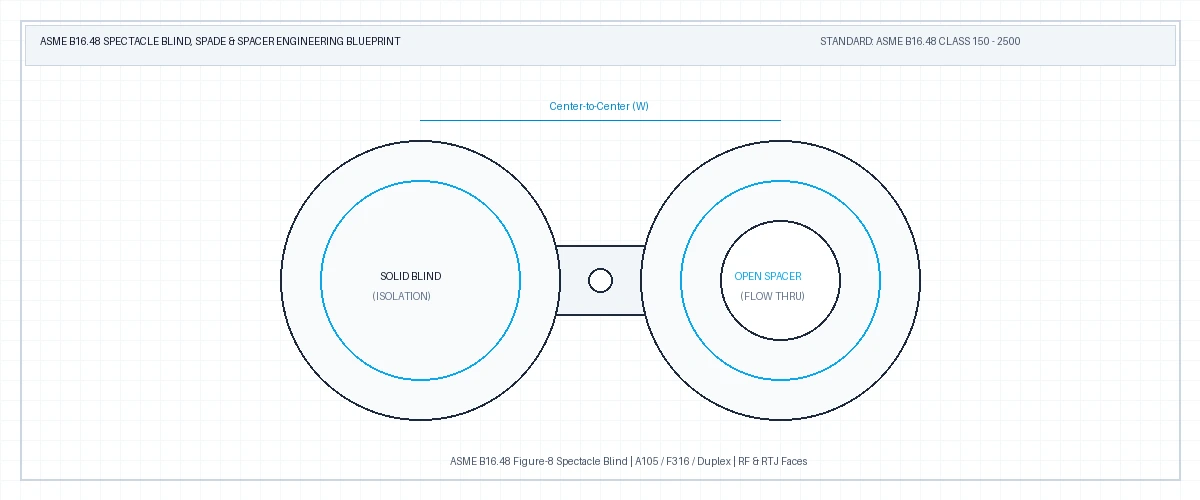

Spectacle Blind, Spacer & Paddle Blind High-Integrity Assembly
Figure-8 spectacle blind and paddle blanks providing unmistakable visual verification of positive mechanical isolation during maintenance.
Forged Grain Flow Alignment & Flange Sealing Integrity
Engineered with directional closed-die hot forging to produce continuous metallurgical grain flow along flange hub contours.
Continuous Closed-Die Grain Flow
Hot forging preserves unbroken metallic fiber lines conforming to the flange neck radius, yielding 35% higher tensile impact resistance than cut plate blanks.
Precision Serrated Gasket Facing
Precision CNC lathe grooving generates standardized spiral or concentric serrated phonographic finish (125-250 µin Ra) for leak-proof gasket seating.
100% Volumetric Ultrasonic Examination
Every forged billet and finished flange undergoes 100% ultrasonic testing per ASTM A388 to ensure total freedom from internal laminations and porosity.
Explore All 4 Pipeline Fitting Sub-Categories
1:1 aligned with TSV factory catalog. Navigate to ASME forged flanges, pipeline air release valves, expansion bellows, or butt-weld reducers.
ASME B16.5 Forged Flanges
Weld neck, slip-on, blind, socket-weld, and RTJ pipe flanges in ASTM A105, A350 LF2, and stainless metallurgy.
Current Series View Page Top ↑Pipeline Air Release Valve
Dynamic combination air release and vacuum breaker surge suppression valves.
AWWA C512 · Anti-Slam View Details →Expansion Bellows & Joints
Multi-ply metallic expansion joints absorbing thermal pipeline movement.
EJMA 10th · High Temperature View Details →Butt-Weld Piping Reducers
Seamless concentric and eccentric butt-weld pipeline diameter reducers.
ASME B16.9 · Seamless Forged View Details →Configure & Request a Quote for ASME B16.5 Forged Flanges & High-Integrity Piping Spools
Submit your itemized bill of materials (MTO) or piping project specifications. TSV application engineers provide complete dimensional drawings, datasheets, and factory-direct commercial bids within 24 hours.
