Swing vs Dual-Plate vs Piston Check Valve
A check valve has one job, and the closure type decides how quickly it does it. Speed of closure is what prevents slam.
Swing vs Dual-Plate vs Piston Check Valve
The check valve closes when the flow reverses, so the quality of the closure is measured by how little reverse flow has to occur before it is shut. A closure that is still travelling when reverse flow arrives produces the pressure spike known as slam.
Swing, dual-plate and piston designs sit at different points on that scale, and they also differ in pressure drop and in what they tolerate from the medium.
Swing against Dual-plate / piston
| Aspect | Swing | Dual-plate / piston |
|---|---|---|
| Closure travel | Long, a full disc arc | Short, half discs or a guided piston |
| Closing speed | Slower, so reverse flow builds first | Faster, so less reverse flow occurs |
| Slam risk on large bore | Highest | Much lower; non-slam designs exist for severe duty |
| Pressure drop at full flow | Low, large clear flow area | Higher, the discs or piston sit in the stream |
| Mounting position | Best on horizontal lines with the hinge above | Less sensitive; confirm the orientation limits |
| Dirty media | Tolerates debris reasonably well | Guide and spring clearances are more vulnerable |
| Cost and weight | Higher for large sizes | Lower and lighter for the same duty |
Closing speed is the whole argument
On a short line with a fast-stopping pump, the reverse velocity can be high by the time a swing disc reaches its seat. That is where the noise and the pipe movement come from.
A dual-plate closure has less distance to travel and closes on spring assistance, so it shuts earlier in the transient. On a line where the surge analysis has flagged slam, changing the closure type is usually cheaper than adding a surge vessel.
Pressure drop has to be paid for
A swing check presents a large clear area when it is open, which is why it is often chosen on lines where the pressure drop budget is tight. The dual-plate and piston designs put hardware in the flow path and charge for it in permanent pressure loss.
On a large line with a long service life, that pressure loss is a running cost. On a short line where the transient dominates, it is a rounding error by comparison.
Where each type belongs
Directly downstream of a pump, on a line where the pump may stop quickly, the faster closure is normally correct. On a long transmission line where the flow is steady and the pressure drop matters, the swing pattern remains a reasonable answer.
Piston designs are often seen on smaller lines and on steam service, where the guided closure resists chatter. Where the transient is genuinely severe, the honest answer is a purpose-built non-slam or axial design rather than a change of pattern.
Which one to choose
- Choose swing. Long lines with steady flow where pressure drop matters, and where the transient is mild.
- Choose dual-plate. Directly downstream of pumps and compressors, or anywhere the surge analysis has identified slam on a short, fast-closing line.
- Choose piston. Smaller lines and steam service where a guided closure resists chatter, and where the medium is clean enough for the guide clearances.

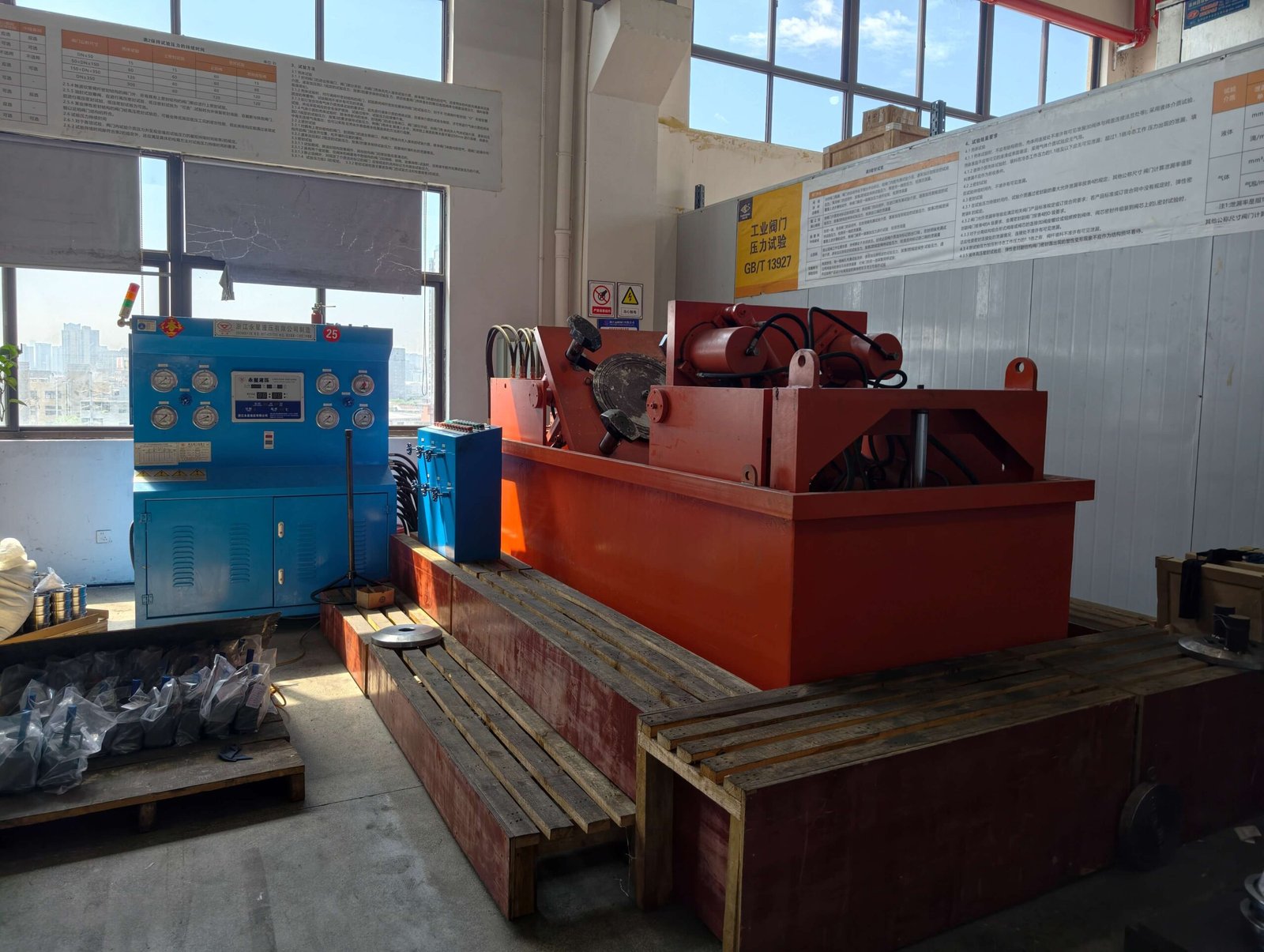

From the works and the projects
Questions this page answers
It usually shows up as noise and pipe movement when a pump stops, and it is confirmed by a surge analysis. If the analysis flags it, the closure type is the first thing to change.
Yes, typically more than a swing check of the same size, because the discs and springs sit in the flow path. The trade is a faster and quieter closure.
Not all of them. Swing checks normally want the hinge above the flow, and each design has published orientation limits that should be confirmed before installation.
