Wafer vs Lug vs Double-Flanged Butterfly Valve
Three butterfly bodies, three different answers to one question: what holds the valve in the line?
Wafer vs Lug vs Double-Flanged Butterfly Valve
All three butterfly valves do the same hydraulic job. They differ in how they are attached, and that determines what you can do with the line afterwards.
The practical consequence is felt during maintenance rather than during normal running: whether the line can be opened on one side with the valve still in place, and whether the valve can be used as an end-of-line isolation point.
Wafer against Lug (and double-flanged)
| Aspect | Wafer | Lug (and double-flanged) |
|---|---|---|
| Mounting | Clamped between two flanges by through bolts | Lug: bolted to each flange through threaded lugs. Flanged: bolted by its own flanges |
| Remove without opening the line | No, the line has to be spread | Yes for a lug valve, using the flange bolts |
| Dead-end / end-of-line duty | Not suitable | A lug valve is the usual answer |
| Flange bolting length | Long through bolts across both flanges | Standard flange bolting |
| Weight and cost | Lowest | Higher, more so for the double-flanged |
| Piping flexibility | Compact between flanges | Double-flanged behaves like any flanged valve |
| Typical use | General isolation on new pipework | Where the line may be opened on one side, or on end-of-line duty |
The two questions that settle it
First: will the line ever be opened on one side of the valve while the other side is still bolted up? If yes, a wafer valve is the wrong choice, because releasing one flange drops the valve out of the joint.
Second: is the valve at the end of a run, with nothing downstream of it? That is dead-end duty, and only a lug or double-flanged valve can carry it, because the bolts have to hold against the full line pressure through the valve's own body.
Why lug valves are common on retrofits
On an existing line, being able to take the valve out without disturbing the pipework on both sides is worth a great deal. A lug valve can be unbolted from its own flanges and lifted out, which shortens a shutdown considerably.
The trade is weight and cost. Lug bodies are heavier than wafers, and the extra material is entirely in the mounting rather than in the pressure boundary.
The dimension trap
Butterfly face-to-face dimensions come from API 609 rather than from the ASME B16.10 table used for gate and globe valves. A wafer valve and a double-flanged valve of the same size are different lengths, so a spool built around one will not accept the other.
Confirm the face-to-face dimension and the lug or flange pattern together before the piping is fabricated. Getting one right and the other wrong produces a valve that is the correct length and still does not bolt up.
Which one to choose
- Choose wafer. New pipework, general isolation, compactness and lowest cost, where the line will not be split on one side.
- Choose lug. Where the line may be opened on one side, or where the valve is the end-of-line isolation point. Also common on retrofits for exactly that reason.

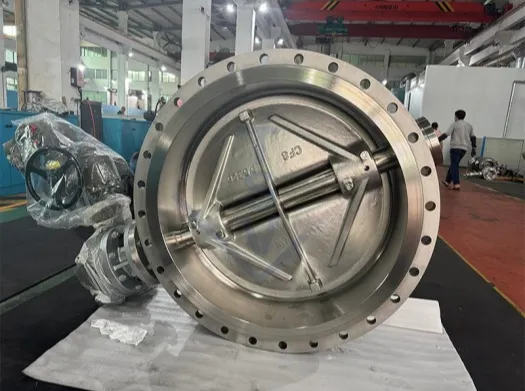

- Choose double-flanged. Where the piping design expects both flanges to belong to the valve, and where the weight is not the constraint.
From the works and the projects
Questions this page answers
No. With nothing downstream, the through bolts have nothing to hold against. End-of-line duty requires a lug or double-flanged valve.
Not necessarily. Butterfly face-to-face dimensions come from API 609 and vary by body style, so the dimension and the pattern both have to be confirmed.
The wafer design, because it has the least material. The saving is real and the limitation is that the line must be split to remove the valve.
