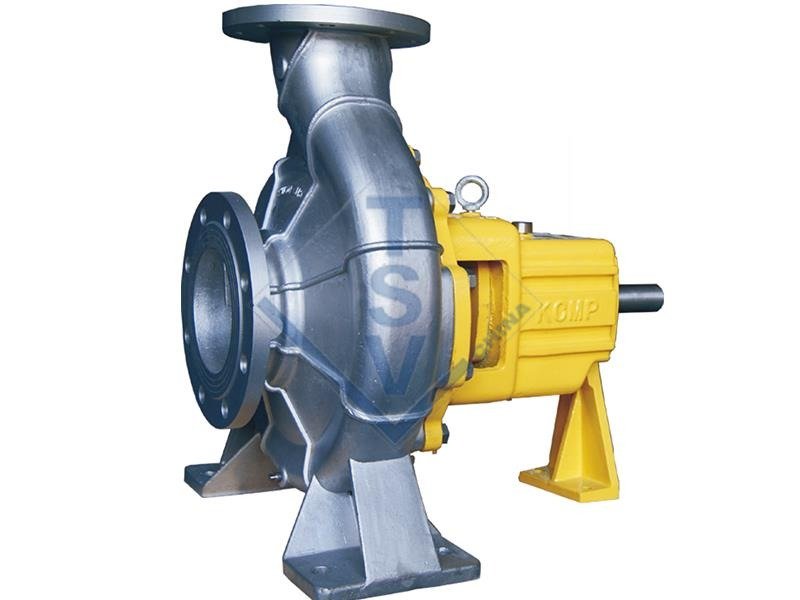

API 610 Heavy-Duty Petrochemical Process Pump (Type OH2)
Centerline-supported single-stage overhung centrifugal pump (Type OH2) engineered for continuous refinery crude oil distillation, vacuum resid, and hydrocarbon pipeline export.
Design Criteria & Manufacturing Specifications
Manufactured strictly to international pumping machinery standards with 100% factory hydrostatic shell testing, dynamic rotor balancing, and certified performance testing per ISO 9906 / API 610.
| Engineering Parameter | Applicable Codes, Standards & Design Criteria |
|---|---|
| Design Standards | API 610 12th Edition, ISO 13709 (Type OH2) |
| Casing Mounting Style | Centerline Supported (Thermal Expansion Neutral) |
| Flange Ratings & Connections | ASME B16.5 Class 300 / 600 / 900 RF / RTJ |
| Operating Flow Capacity | Up to 2,600 m³/h (11,500 GPM) |
| Total Dynamic Head | Up to 330 meters (1,080 feet) |
| API 682 Seal Chambers | Accommodates all API 682 Category 1/2/3 Type A/B/C Cartridge Seals |
| API 610 Materials Class | S-5, S-6, C-6, A-8, D-1, D-2 (Carbon Steel, 12% Cr, 316SS, Duplex) |
| Testing & Acceptance | API 610 Hydrostatic 1.5x MAWP, Full 4-Hour String Vibration & Performance Run |
API 610 Petrochemical Pump Standard & Engineered Models
Browse TSV's complete portfolio of API 610 OH2, BB2, and high-temperature refinery process pumps built for continuous unspared severe hydrocarbon operations.
API 610 Type OH2 Centerline-Supported Single-Stage Refinery Pump
Heavy-duty centerline-supported casing withstands nozzle loads exceeding 2x API 610 limits while maintaining shaft alignment up to 450°C.
High-Pressure API 610 Centerline Coking & Vacuum Residue Pump
Engineered with steam-jacketed casing and water-cooled bearing housing for unspared vacuum tower bottoms and heavy asphalt handling.
Cryogenic Hydrocarbon LPG & Ethylene API 610 Export Pump
Special low-temperature alloy casing with inducer option for handling flashing liquefied petroleum gas, propane, and ethylene with minimal suction head.
API 610 Mechanical Ruggedness & Rotor Dynamics Integrity
Built to operate for 3 years of continuous uninterrupted service without maintenance in compliance with API 610 Section 6.1.
Thermal Expansion Neutral Centerline Pedestal
Casing support feet aligned on shaft centerline allow radial thermal expansion without tilting the shaft axis, preserving optical coupling alignment at 400°C+.
Stiff Shaft Design (L³/D⁴ Compliance)
Low shaft deflection ratio below 0.002 in (0.05 mm) at mechanical seal face during all operating conditions, dramatically prolonging seal life.
Rigorous 2x API 610 Nozzle Load Capacity
Heavy structural casing wall thickness resists massive thermal piping expansion forces from refinery transfer lines without casing binding.
