Soft Seat Materials, PTFE, RPTFE, PPL and Beyond
A soft seat seals by deforming slightly into the metal it presses against, which is why it is tight in a way a metal seat cannot match. The polymer also sets the temperature at which the valve stops being a soft-seated valve.
The family runs from basic PTFE through reinforced grades to higher-performance polymers, and each step extends the band at the cost of tighter manufacturing tolerances and a higher price.
Why the grades differ
Basic PTFE has excellent chemical resistance and a modest temperature band. Reinforcing it with glass or carbon fibre improves its mechanical behaviour, particularly its resistance to cold flow under load, and raises the usable band.
Higher-performance polymers extend the temperature further and are usually chosen when the process runs hotter than the standard family can take. Where even those are not enough, the answer is a metal seat rather than another polymer.
Cold flow and pressure
A polymer under sustained load will deform over time, and the load in a ball valve seat comes from line pressure. Reinforcement reduces the tendency, which is why reinforced grades appear on higher-pressure and larger-bore soft-seated valves.
That is also why the seat material and the pressure class interact. The same seat polymer that is entirely adequate at a low class may be marginal at a high one, so the two have to be selected together.
Chemistry and temperature together
Chemical resistance and temperature are not independent. A polymer that resists a medium at ambient may be attacked by it at temperature, and the published compatibility tables reflect that.
The practical instruction is to send the medium, its concentration and the design temperature, and let the seat follow. A seat chosen from a compatibility chart alone, without the temperature, is only half a decision.
Seat Family Comparison
| Item | Detail | Note |
|---|---|---|
| PTFE family | Excellent chemical resistance, modest temperature band | The standard soft seat |
| Reinforced (glass or carbon filled) | Better resistance to cold flow and wear, extended band | Higher pressure and larger bore soft seats |
| Higher-performance polymers | Extended temperature capability | Hotter process duty within a soft seat |
| Elastomers | Excellent sealing at low temperature and for water service | Where the medium and temperature suit them |
| Metal-to-metal | Beyond the range of any polymer | The answer when polymers reach their limit |

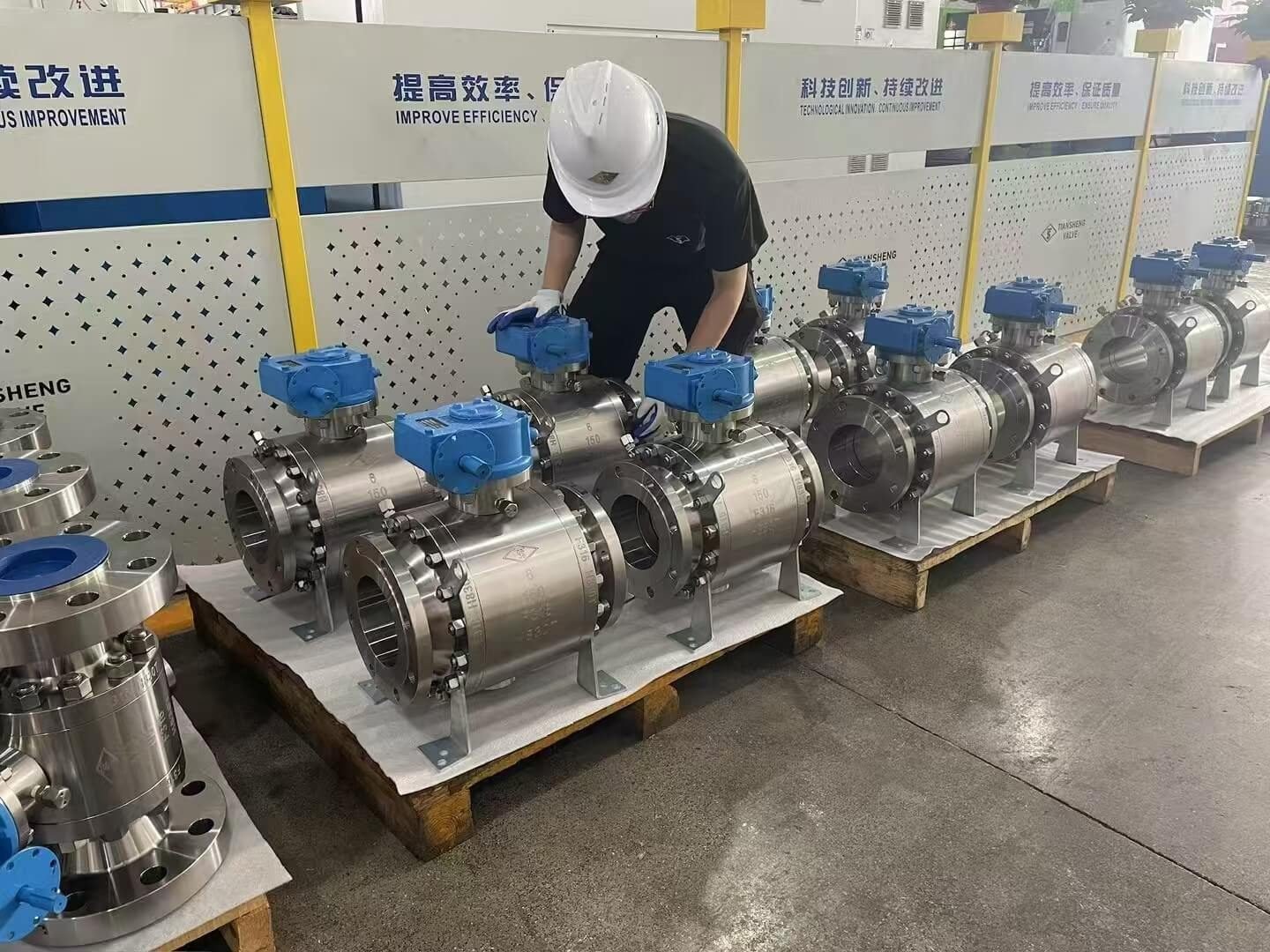

From the works and the projects
Questions this page answers
Because the polymer softens and eventually degrades as temperature rises. The published band for the specific grade, from the seat supplier's data sheet, is the figure that applies.
It improves resistance to cold flow under sustained load and to wear, which extends both the usable pressure and the temperature band.
The two are linked but not interchangeable. Temperature still degrades the polymer, so the seat supplier's data for that grade and condition is what governs.
