PTFE Sleeved Non-Lubricated Plug Valves
Engineered for corrosive chemicals, acids, and ultra-pure process media where lubricant contamination is strictly forbidden. TSV sleeved plug valves feature a high-density virgin PTFE or PFA sleeve locked securely into the valve cavity, providing full 360-degree bi-directional bubble-tight shut-off without maintenance greasing.
Design Codes & Valve Construction Standards
Fully aligned with international engineering standards for refinery units, oil & gas transmission, and severe chemical isolation.
| Engineering Parameter | Standard Compliance & Material Execution |
|---|---|
| Design & Manufacture Standards | API 599, API 6D, ASME B16.34, BS 5353 |
| Face-to-Face & End-to-End | ASME B16.10, API 6D, EN 558 Series |
| Flanged & Butt-Weld Ends | ASME B16.5 (<=24"), ASME B16.47 Series A/B, ASME B16.25 (Butt Weld) |
| Pressure & Temperature Ratings | ASME B16.34 Class 150, 300, 600, 900, 1500, 2500 |
| Pressure Testing & Inspection | API 598, API 6D Rate A, ISO 5208, EN 12266-1 |
| Fire Safety Certification | API 607, ISO 10497 (Tested and Verified Construction) |
| Sour Service & Cracking Resistance | NACE MR0175 / ISO 15156, NACE MR0103 / ISO 17945 |
| Body Castings & Forgings | ASTM A216 WCB, A350 LF2, A351 CF8M, CF3M, Hastelloy C276, Monel 400 |
PTFE Sleeved Non-Lubricated Plug Valves Model Selection
Explore engineered configurations built for severe abrasion, extreme pressure drop, and critical chemical isolation.

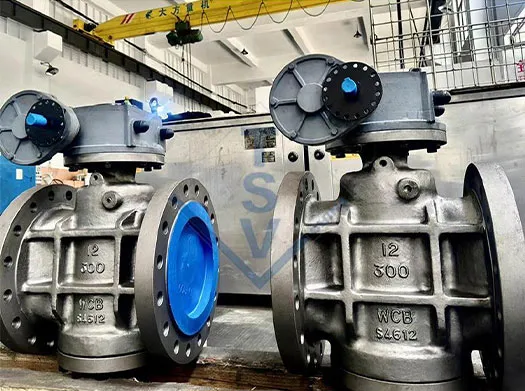

Class 150/300 Flanged PTFE Sleeved Chemical Plug Valve
Standard flanged chemical process plug valve with locked virgin PTFE sleeve for sulfuric acid, caustic soda, and chlorine service.
Corrosion-Resistant Stainless Steel CF8M / Hastelloy Sleeved Plug
High-alloy casting bodies paired with chemically inert PTFE sleeves to handle concentrated acids, organic solvents, and corrosive brine.

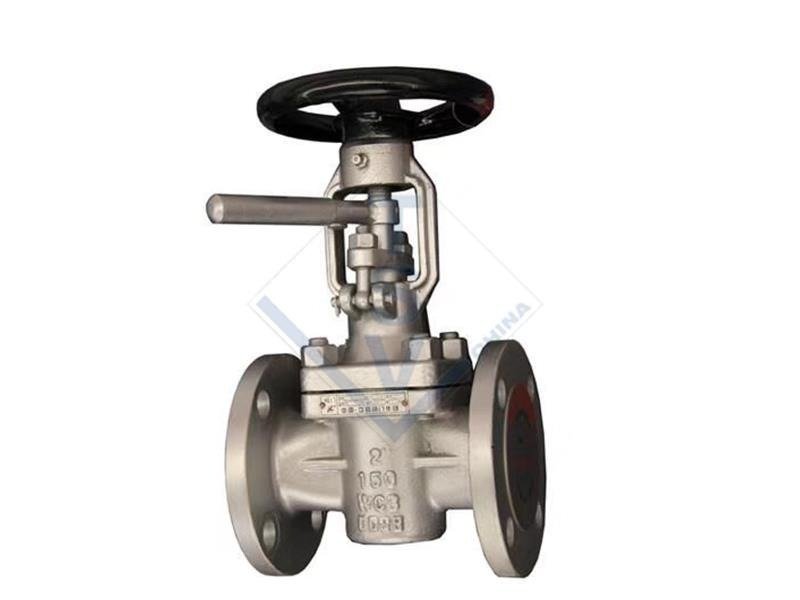

High-Temperature Modified PTFE / PFA Sleeved Plug Valve
Advanced fluoropolymer sleeve technology with enhanced creep resistance for thermal cycling lines up to 230°C.

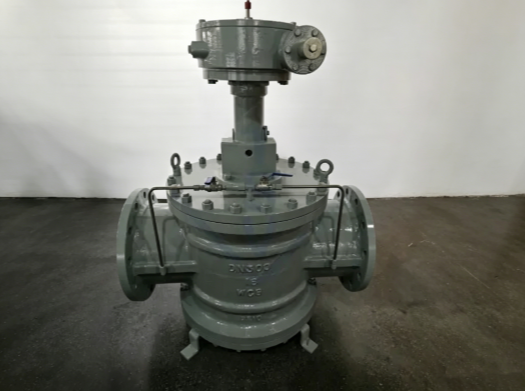

Multi-Port 3-Way PTFE Sleeved Diverter Plug Valve
Provides flow switching and diversion in chemical reactor and mixing systems with zero internal cavities where product can degrade.
PTFE Sleeved Zero-Grease Sealing Architecture
How 360-degree locked PTFE sleeves deliver clean, maintenance-free, bubble-tight chemical isolation.
360° Cavity-Free Full Wrap Sleeve
The sleeve completely encloses the plug, eliminating cavity pockets where slurry or polymerizing fluids can deposit and freeze the valve.
Positive Retention Locking Ribs
Precision circumferential body ribs lock the PTFE sleeve firmly in place, preventing sleeve rotation or axial extrusion during cycling.
Zero Lubricant Process Contamination
Zero grease injection means 100% clean operation, essential for semiconductor-grade acids, high-purity chemicals, and pharmaceutical media.
In-Line External Adjustability
Top gland adjustment bolts allow fast, fine recalibration of plug-to-sleeve sealing pressure while the valve remains in service under line pressure.
Explore All 4 Plug Valve Sub-Categories
1:1 aligned with TSV factory catalog. Severe-service quarter-turn plug valves with positive dynamic sealing.
Lubricated Taper Plug Valve
API 599 dynamic sealant injection grooves for high-pressure dirty natural gas and slurry manifolds.
API 599 Lubricated View Lubricated Taper Plug Valve →PTFE Sleeved Non-Lubricated Plug Valve
Full 360° virgin PTFE sleeve offering zero maintenance and zero lubrication in corrosive chemical media.
Current Series View Page Top ↑Inverted Pressure Balanced Plug Valve
Dynamic pressure balance channels preventing plug taper lock in severe cyclic high-differential service.
Pressure Balanced View Inverted Pressure Balanced Plug Valve →Twin Seal DBB Double Plug Valve
Mechanical expanding slips for zero friction wear and verified double block and bleed in custody transfer.
API 6D Twin Seal View Twin Seal DBB Double Plug Valve →Request Plug Valve Pricing & Technical Submittal
Factory direct quotation within 24 hours. Send pipeline conditions, medium data, or project MTO for detailed engineering submittal.
