Flanged Industrial Globe Valve
Full-size flanged industrial globe valve engineered to BS 1873 and API 623. Designed for fine flow regulation and zero-leakage positive shutoff in petrochemical distillation, power plant steam loops, and oil refinery manifolds.
Design Criteria & Manufacturing Specifications
Manufactured strictly to international engineering codes with 100% factory pressure testing, full EN 10204 3.1 / 3.2 material traceability, and accredited third-party witness support.
| Engineering Parameter | Applicable Codes, Standards & Design Criteria |
|---|---|
| Design Standard | BS 1873, API 623, ASME B16.34 |
| Body Castings | ASTM A216 WCB, A352 LCC, A351 CF8M, CF3M |
| Disc Metallurgy | Stellite Gr.6 overlay with contour guidance preventing chatter |
| Testing Standard | 100% Factory Tested to API 598 & ISO 5208 |
Flanged Globe Valve Standard & Engineered Models
TSV manufactures an engineered lineup of Flanged Globe Valve configurations for global oil & gas transmission pipelines, refinery manifolds, power plants, and severe industrial processes. Each unit undergoes 100% hydrostatic and pneumatic factory acceptance testing before dispatch.

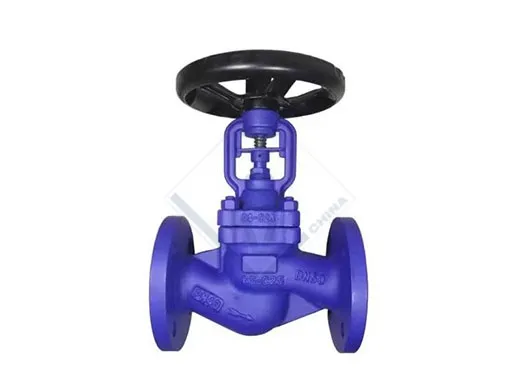

DIN EN 13709 Flanged Bellows-Sealed Zero-Emission Globe Valve
Multi-ply Inconel/SS316 hydroformed bellows completely encapsulates the stem, guaranteeing 100% leak-proof isolation for hazardous chemicals and thermal oils.

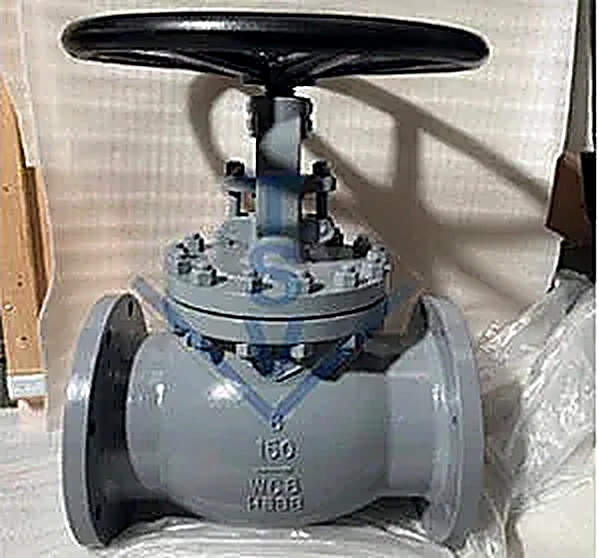

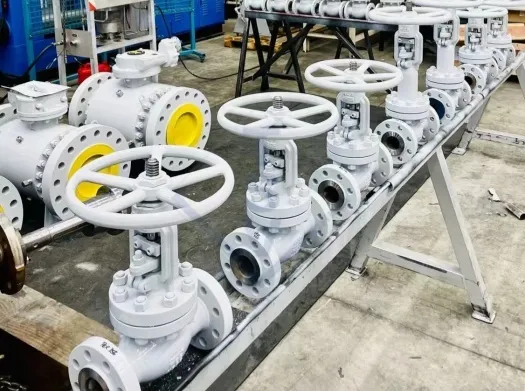

API 623 Heavy Bolted Bonnet Flanged Cast Steel Globe Valve
Robust industrial globe valve with integral seat ring, conical seating face, and live-loaded packing glands for refinery hydrocracker units.

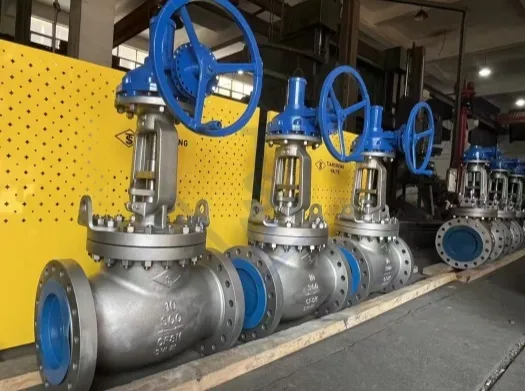

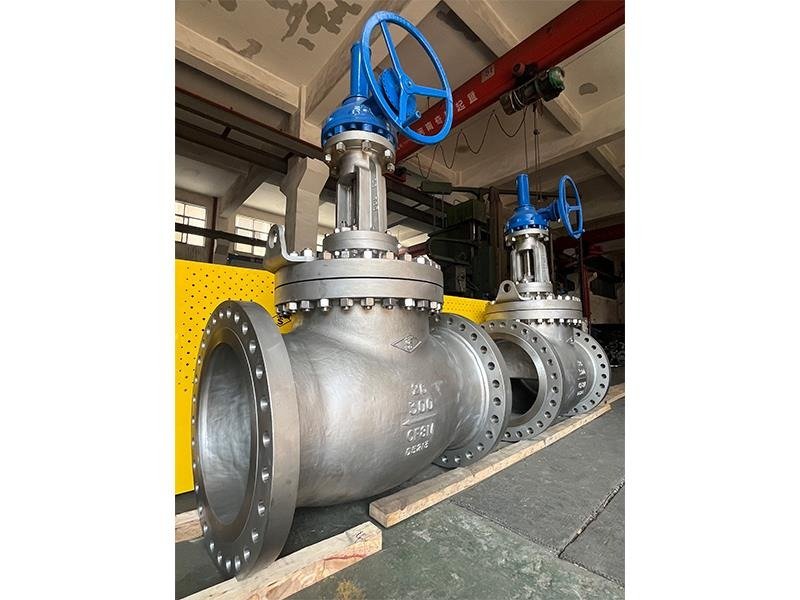

Stainless Steel Acid-Resistant Flanged Globe Valve
Precision cast ASTM A351 CF8M stainless steel body resisting nitric acid, acetic acid, and corrosive fertilizer process streams.
Angle-Pattern Cast Steel Flanged High-Drop Globe Valve
90-degree inlet-to-outlet geometry eliminates a 90-degree piping elbow, perfectly handling high velocity erosive boiler discharge flashing fluids.
Guided Plug Linear Hydrodynamics & Zero-Leakage Packing Architecture
Contoured plug profiles deliver linear or equal-percentage flow control, supported by deep stuffing boxes with live-loaded graphite packing for fugitive emission control.
100% Hydrostatic Acceptance
Every valve is pressure-tested per API 598 / API 6D Rate A with zero allowable bubble leakage prior to factory crating.
EN 10204 3.1 Certified
Certified Mill Test Reports (MTR) with optical emission spectrometer chemical composition and mechanical impact values.
Global OXY Approved Supplier
Audited and approved on the global master vendor list (#24) of Occidental Petroleum for severe upstream duties.
Explore All 3 Globe Valve Sub-Categories
1:1 aligned with TSV factory catalog. Navigate to precision throttling cast steel, zero-emission bellows sealed, or high-pressure forged globe valves.
Cast Steel Globe Valve
BS 1873 heavy bolted bonnet cast steel globe valve with Stellite hardfaced plug disc for manual throttling.
BS 1873 / API 623 View Cast Steel Globe Valve →Forged Steel Globe Valve
API 602 forged alloy unibody engineered for high-temperature power plant drains, vents, and roots.
Class 800 - 2500 View Forged Steel Globe Valve →Flanged Bellows Globe Valve
Multi-ply Inconel metal bellows seal eliminating toxic fugitive emissions in thermal fluid loops.
