Double Flanged Industrial Butterfly Valve
Heavy-duty double flanged butterfly valve engineered for water intake mains, seawater desalination, and power plant cooling circuits. Rigid flanged body absorbs line stresses and ensures precise pipe alignment during deep trench burial or high-vibration installations.
Design Criteria & Manufacturing Specifications
Manufactured strictly to international engineering codes with 100% factory pressure testing, full EN 10204 3.1 / 3.2 material traceability, and accredited third-party witness support.
| Engineering Parameter | Applicable Codes, Standards & Design Criteria |
|---|---|
| Design Standard | API 609, AWWA C504, ASME B16.34 |
| Flange Standard | ASME B16.5 / ASME B16.47 Series A / EN 1092-1 |
Flanged Butterfly Valve Standard & Engineered Models
TSV manufactures an engineered lineup of Flanged Butterfly Valve configurations for global oil & gas transmission pipelines, refinery manifolds, power plants, and severe industrial processes. Each unit undergoes 100% hydrostatic and pneumatic factory acceptance testing before dispatch.

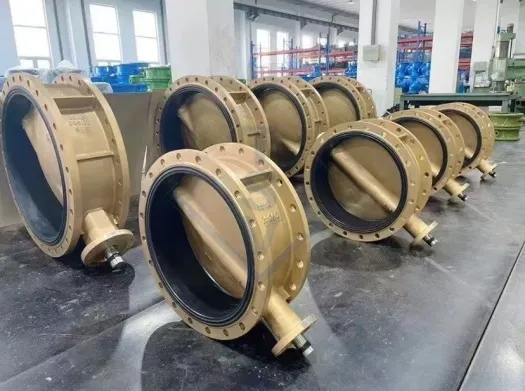

Double-Flanged Large Bore AWWA Waterworks Butterfly Valve
Heavy double flanged construction with integral vulcanized rubber body liner and corrosion-resistant disc edge for municipal raw water transmission lines.
High-Pressure Cast Steel Double Eccentric Flanged Butterfly Valve
Cast carbon steel flanged valve designed for offshore platforms and refinery cooling circuits with high flow capacity and low dynamic torque.
Worm Gear Enclosed Marine Flanged Seawater Butterfly Valve
Nickel aluminum bronze body and Monel trim impervious to marine biofouling and crevice pitting in ballast water and offshore firewater loops.
Electric Intelligent Modulating Double Flanged Butterfly Valve
Equipped with high-precision electric rotary actuator, internal PID controller, and bus communication (Profibus/Modbus) for power station water throttling.
High Temperature Flanged Hard-Faced Metal Seated Butterfly Valve
Hardfaced Stellite seat welded directly into the cast steel body, maintaining zero leak shut-off under severe thermal expansion cycles.
Desulfurization Heavy Rubber-Lined Flanged Butterfly Valve
Thick vulcanized chlorobutyl or hard natural rubber lining designed to endure limestone slurry wear in coal-fired power plant flue gas desulfurization (FGD).
Double-Flanged Rigid Construction & High-Pressure Pipeline Integrity
Full double-flanged body architecture prevents pipe stress transfer to the valve seat, ensuring reliable bi-directional shutoff in heavy industrial piping.
100% Hydrostatic Acceptance
Every valve is pressure-tested per API 598 / API 6D Rate A with zero allowable bubble leakage prior to factory crating.
EN 10204 3.1 Certified
Certified Mill Test Reports (MTR) with optical emission spectrometer chemical composition and mechanical impact values.
Global OXY Approved Supplier
Audited and approved on the global master vendor list (#24) of Occidental Petroleum for severe upstream duties.
Explore All 5 Butterfly Valve Sub-Categories
1:1 aligned with TSV factory catalog. Severe-service metal-seated and resilient-seated quarter-turn isolation valves.
Triple Offset Butterfly Valve
Bi-directional zero-leakage metal-to-metal seating for high-temperature steam and hydrocarbon lines.
API 609 Category B View Triple Offset Butterfly Valve →Double Flanged Butterfly Valve
Heavy double-flanged body suitable for dead-end service and large diameter cooling water pipelines.
Current Series View Page Top ↑Wafer Type Butterfly Valve
Compact lightweight body designed for tight installation envelopes between pipeline flanges.
Compact Wafer View Wafer Type Butterfly Valve →Lugged Body Butterfly Valve
Threaded lug holes allowing downstream piping removal while maintaining upstream pressure boundary.
Full Lugged View Lugged Body Butterfly Valve →Resilient Seated Butterfly Valve
EPDM / NBR / PTFE lined body for bubble-tight isolation in water treatment and HVAC systems.
Resilient Lined View Resilient Seated Butterfly Valve →Request Engineering Submittal & Commercial Quotation
Connect directly with our Yongjia engineering technical sales team. Receive technical engineering datasheets, CAD dimensional GA drawings, and quotation within 24 hours.
